• Stainless Steel

    Material

  • 1/8"-4"

    Size

  • BS21/NPT/DIN2999

    Thread

Metal Pipe Fittings

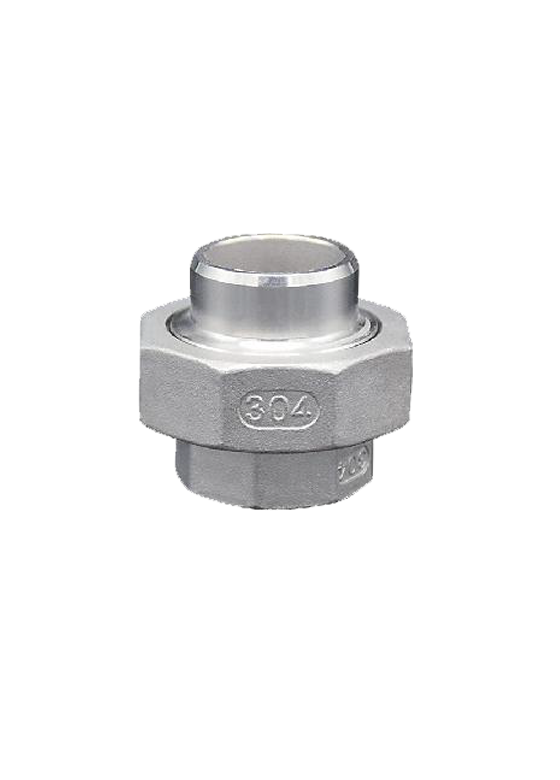

Union BW-F

The Union BW-F is a high-performance pipe fitting crafted from durable stainless steel, designed for various applications including high-pressure and corrosive media systems.

  • High Strength
  • Corrosion Resistant
  • Wide Temperature Range
    • OEM Custom
    • Fast And Safe Logistics

    Union BW-F

    The Union BW-F pipe fitting is manufactured using advanced Silica Sol Precision Casting Technology, ensuring superior quality and precision. It is available in sizes ranging from 1/8" to 4" and is made from ASTM A351 CF8 and CF8M stainless steel variants, making it suitable for a wide range of applications. This fitting boasts impressive physical properties, including a tensile strength of 485Mpa and a yield strength of over 205Mpa. Designed for high-pressure and high-temperature environments, it ensures reliability and safety in various industries, including oil, gas, and food processing.

    Features

    High Strength

    With a tensile strength of 485Mpa, the Union BW-F withstands demanding conditions, ensuring long-lasting performance even under pressure.

    Corrosion Resistant

    Constructed from stainless steel 304/316, this fitting resists corrosion, making it ideal for harsh environments and corrosive media.

    Easy Installation

    Designed for user-friendly installation, the Union BW-F features standard threading options, allowing for quick and efficient setup.

    Wide Temperature Range

    This fitting operates effectively in temperatures from -76°F to +572°F, suitable for both high-temperature and low-temperature applications.

    Applications

    Fuel & Oil

    Camlock couplings are indispensable in the fuel and oil industry, providing reliable and leak-proof connections for transferring petroleum products. Their quick connect/disconnect capability enhances safety and efficiency during loading and unloading processes.

    Agriculture

    Food and Beverages

    Gas

    Specs

    1/8"-4"

    Product Specifications

    Product CodeLT-05H
    Size1/8"-4"
    TechnologySilica Sol Precision Casting Technology
    Physical PropertyTensile strength: 485Mpa, Yield strength > 205Mpa, Elongation: 35%
    Material We Can DoStainless steel 304/316/CF8/CF8M/1.4308/1.4438
    ThreadBS21 (BSPT&BSPP), ANSI/ASME B1.20.1 (NPT), DIN2999(R/RP), JIS B O203/2(PT), KS BO221/2(PT), etc.
    Temperature-76°F to +572°F(-60℃ to +300°C)
    SurfacePickling and Peeling
    ModelP-031
    ShapeEqual

    Logistics and Certifications

    CertificateISO 9001:2015,IS014001:2015, CE, ROHS, KC, etc..
    PackagePVC bag for each piece.Cartons with pallet/out pallet/wooden boxes
    PortNingbo/Shanghai, China Or other port on request.
    SampleOffer free samples and freight collected
    Delivery DetailAccording to the quantities and specifications of each orderA complete stock to provide fast deliveries for small orders.Normal delivery times is from 30 to 45 days after receiving the deposit
    Generic ApplicationsFuel & Oil, Agriculture, Food and Beverages, Gas
    Get Instant Quote

    Support

    More Support

    Installation Guide

    To install the Union BW-F pipe fitting, ensure that the pipe ends are clean and free of debris. Align the threads properly and hand-tighten them before using a wrench for a secure fit. Avoid over-tightening to prevent damage. Verify that the fitting is compatible with your piping system's specifications. Always refer to the manufacturer's guidelines for optimal installation practices and safety precautions.

    After-Sales Maintenance

    FAQs

    Looking for answers about Union BW-F? Visit our FAQ section for detailed information and expert insights.

    Contact Us
    • What is the size range of the Union BW-F?
      The Union BW-F pipe fitting comes in a size range from 1/8" to 4", accommodating various piping needs across different applications.
    • What materials are used for this fitting?
      The Union BW-F is made from premium stainless steel materials, specifically ASTM A351 CF8 (304) and ASTM A351M CF8M (316), ensuring durability and corrosion resistance.
    • What applications is the Union BW-F suitable for?
      This fitting is ideal for a variety of applications, including high-pressure fluid delivery, corrosive medium systems, and fire protection systems, among others.
    • Is a sample available for this product?
      Yes, we offer free samples of the Union BW-F pipe fitting. However, the freight cost will be collected, allowing you to assess the product's quality before purchasing.
    • What certifications does this product have?
      The Union BW-F is certified under ISO 9001:2015, ISO 14001:2015, and CE, ROHS, KC, ensuring it meets international standards for quality and safety.
