• Stainless Steel

    Material

  • 1/2" 3/4" 1"

    Size

  • BS21/BSPT/BSPP

    Thread

Metal Pipe Fittings

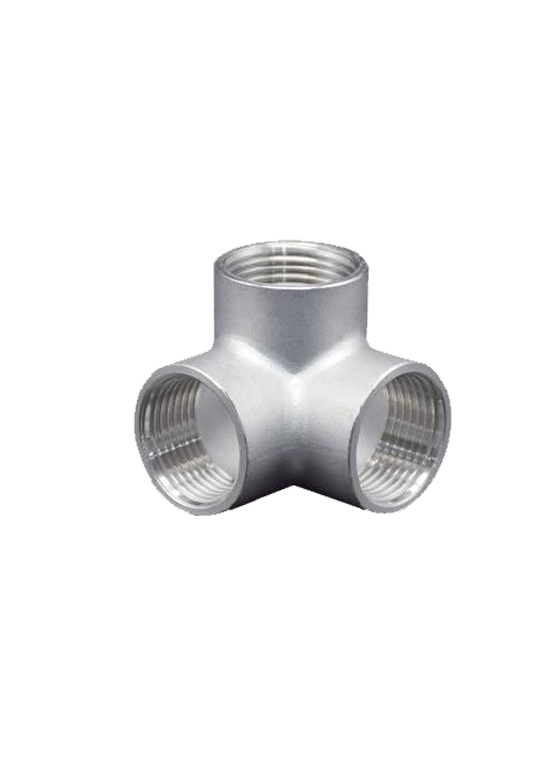

Tree-Dimensional Tee F-F-F

The Tree-Dimensional Tee F-F-F is a premium pipe fitting designed for high-pressure and corrosive environments, crafted from durable stainless steel using advanced casting technology.

  • High-Pressure Capability
  • Corrosion Resistant
  • Easy to Install
    • OEM Custom
    • Fast And Safe Logistics

    Tree-Dimensional Tee F-F-F

    The Tree-Dimensional Tee F-F-F is engineered to meet the demands of various applications, including high-pressure fluid delivery and corrosive media transport. Constructed from ASTM A351 CF8 and CF8M stainless steel, this fitting offers exceptional tensile and yield strength, making it a reliable choice for critical systems. Its advanced Silica Sol Precision Casting Technology ensures a high level of dimensional accuracy and surface finish, while the pickling and peeling treatment enhances corrosion resistance. With a wide temperature range and multiple threading options, it seamlessly integrates into existing systems.

    Features

    High Strength

    With a tensile strength of 485Mpa and yield strength over 205Mpa, the tee fitting is built to withstand demanding conditions.

    Wide Temperature Range

    Operates efficiently in temperatures from -76°F to +572°F, ensuring versatility across various industrial applications.

    Corrosion Resistant

    Constructed from premium stainless steel, this fitting is designed to resist corrosion, making it ideal for harsh environments.

    Easy Installation

    The design allows for straightforward installation and maintenance, reducing downtime and enhancing operational efficiency.

    Applications

    Fuel & Oil

    Camlock couplings are indispensable in the fuel and oil industry, providing reliable and leak-proof connections for transferring petroleum products. Their quick connect/disconnect capability enhances safety and efficiency during loading and unloading processes.

    Agriculture

    Food and Beverages

    Gas

    Specs

    1/2"3/4"1"

    Product Specifications

    Product CodeLT-02N
    Size1/2"3/4"1"
    TechnologySilica Sol Precision Casting Technology
    Physical PropertyTensile strength: 485Mpa, Yield strength > 205Mpa, Elongation: 35%
    Material We Can DoStainless steel 304/316/CF8/CF8M/1.4308/1.4425
    ThreadBS21 (BSPT&BSPP), ANSI/ASME B1.20.1 (NPT), DIN2999(R/RP), JIS B O203/2(PT), KS BO221/2(PT), etc.
    Temperature-76°F to +572°F(-60℃ to +300°C)
    SurfacePickling and Peeling
    ModelP-018
    ShapeEqual

    Logistics and Certifications

    CertificateISO 9001:2015,IS014001:2015, CE, ROHS, KC, etc..
    PackagePVC bag for each piece.Cartons with pallet/out pallet/wooden boxes
    PortNingbo/Shanghai, China Or other port on request.
    SampleOffer free samples and freight collected
    Delivery DetailAccording to the quantities and specifications of each orderA complete stock to provide fast deliveries for small orders.Normal delivery times is from 30 to 45 days after receiving the deposit
    Generic ApplicationsFuel & Oil, Agriculture, Food and Beverages, Gas
    Get Instant Quote

    Support

    More Support

    Installation Guide

    To install the Tree-Dimensional Tee F-F-F, first ensure that all pipe ends are clean and free from debris. Align the tee fitting with the pipes, ensuring that the threads are properly engaged. Utilize appropriate sealing tape on the threads to prevent leakage. Tighten the connections using a wrench, ensuring not to over-torque which could damage the fitting. After installation, conduct a pressure test to ensure there are no leaks before putting the system into operation.

    After-Sales Maintenance

    FAQs

    Looking for answers about Tree-Dimensional Tee F-F-F? Visit our FAQ section for detailed information and expert insights.

    Contact Us
    • What materials are available?
      The Tree-Dimensional Tee F-F-F is available in ASTM A351 CF8 (stainless steel 304) and ASTM A351M CF8M (stainless steel 316), offering excellent corrosion resistance.
    • What is the temperature range?
      This fitting operates effectively within a temperature range of -76°F to +572°F (-60°C to +300°C), suitable for various applications.
    • Can I get a sample?
      Yes, we offer free samples of the Tree-Dimensional Tee F-F-F. However, freight charges will be collected from the customer.
    • What certifications does this product have?
      The product is certified with ISO 9001:2015, ISO 14001:2015, CE, ROHS, KC, and more, ensuring compliance with international standards.
    • What industries can use this fitting?
      This tee fitting is suitable for a variety of industries, including fuel and oil, agriculture, food and beverages, and high-pressure fluid delivery systems.
