• Stainless Steel

    Material

  • 1/8"-2"

    Size

  • BS21/ANSI/ASME/DIN

    Thread

Pipe Fittings

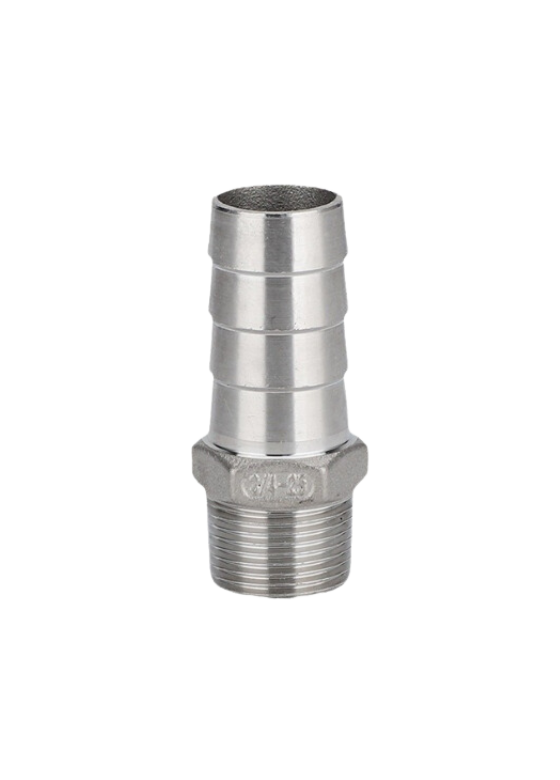

Pagoda Joint

The pagoda joint is a hose connection fitting with a pagoda-like structure. It is commonly used in liquid and gas delivery systems and has excellent stability and sealing.

  • Exquisite Craftsmanship
  • Sturdy and Beautiful
  • Wide Applicability
  • OEM Custom
  • Fast And Safe Logistics

Pagoda Joint

The pagoda joint is made of high-quality stainless steel/brass/nylon, with a variety of material options and sizes to meet the needs of different working environments, flow rates, and pressures. It is easy to install and can be easily connected and fixed to the hose through pipe clamps or clamps, without the need for complex tools to assist, which greatly improves the efficiency of installation and reduces the difficulty of installation.

In addition, the pagoda joint also has excellent corrosion resistance, pressure resistance and wear resistance, as well as excellent sealing, which can ensure that the transmission system will not leak during the transmission of the medium.

Features

Multiple Size Options

The pagoda joints has a variety of sizes to choose from, from 1/8"-2", which can be adapted to a variety of pipe specifications to meet the needs of different systems and equipment.

High-Quality Raw Materials

The raw materials of the pagoda joint include high-quality stainless steel, brass, nylon and polypropylene. Different raw materials play a role in different working conditions, such as stainless steel is suitable for high-temperature and high-pressure environment.

Pressure-Resistant and Explosion-Proof

The pressure-resistant capacity of the pagoda joint is excellent, and it can stably transmit the medium in high-pressure environments such as hydraulic systems. It also has explosion-proof performance and is suitable for use in harsh working conditions.

Anti-Corrosion and Wear-Resistant

The pagoda joint has excellent corrosion resistance and can generally maintain stable performance in various corrosive environments and systems. It also has good wear resistance and can operate stably in the system for a long time.

Applications

Fuel & Oil

Camlock couplings are indispensable in the fuel and oil industry, providing reliable and leak-proof connections for transferring petroleum products. Their quick connect/disconnect capability enhances safety and efficiency during loading and unloading processes.

Agriculture

Food and Beverages

Gas

Specs

1/8"-2"

Product Specifications

Product CodeLT-35A
Size1/8"-2"
TechnologyCNC Precision Machining/Injection Molding
Physical PropertyCommon Working Pressure can Reach 10-25 Bar, Good Wear Resistance
Material We Can DoStainless Steel/Brass/Nylon/Polypropylene
ThreadBS21 (BSPT&BSPP), ANSI/ASME B1.20.1 (NPT), DIN2999(R/RP), JIS B O203/2(PT), KS BO221/2(PT), etc.
Temperature-40℃(-40°F) to 200℃(392°F)
SurfacePolishing/Pickling Passivation/Nickel Plating/Chrome Plating
ModelP-066
ShapeEqual

Logistics and Certifications

CertificateISO 9001:2015,IS014001:2015, CE, ROHS, KC, etc..
PackagePVC bag for each piece.Cartons with pallet/out pallet/wooden boxes
PortNingbo/Shanghai, China Or other port on request.
SampleOffer free samples and freight collected
Delivery DetailAccording to the quantities and specifications of each orderA complete stock to provide fast deliveries for small orders.Normal delivery times is from 30 to 45 days after receiving the deposit
Generic ApplicationsFuel & Oil, Agriculture, Food and Beverages, Gas
Get Instant Quote

Support

More Support

Installation Guide

The pagoda joint is connected to the hose. Before installation, both need to be cleaned to prevent impurities from entering. Then, fix the hose to the pagoda joint according to the interface through a pipe clamp or a clamp to connect it tightly. If the connection method is a threaded connection, you need to tighten the thread with the help of a wrench to ensure sealing. It must be noted that you must not use excessive force to avoid damage to the thread and affect the sealing effect.

After-Sales Maintenance

FAQs

Looking for answers about the Pagoda Joint? Visit our FAQ section for detailed information and expert insights.

Contact Us
  • Can the pagoda joint be reused?
    Metal pagoda joints can be reused, but the sealing conditions need to be checked.
  • What industries and systems are pagoda joints mainly suitable for?
    Pagoda joints are widely used in hydraulic systems, irrigation systems, medical industries and other fields.
  • Can the pagoda joint be used in the food industry?
    As long as the material of the pagoda joint is food grade, it can function normally in the food industry.
  • Are pagoda joints suitable for high-temperature environments?
    Yes. But not all pagoda joints are suitable for high-temperature environments. You need to choose the right pagoda joint according to different temperature environments.
  • Can you provide customized special sizes or materials?
    Of course, we can provide customized services for you. You just need to send us your requirements and we will quickly provide you with the most suitable solution.
