Metal Pipe Fittings

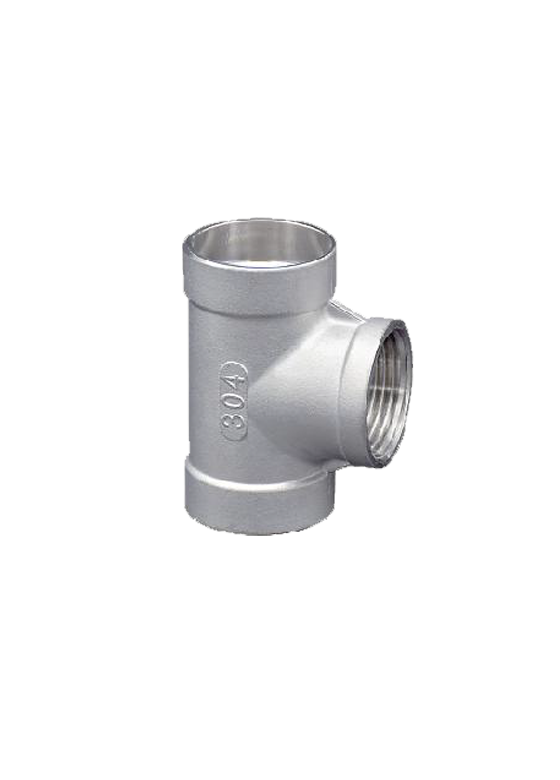

90°TEE SW-F-SW

The 90°TEE SW-F-SW is a durable pipe fitting designed for high-pressure and corrosive applications, ensuring reliable performance across various industries.

  • High Strength
  • Corrosion Resistant
  • Wide Temperature Range
    • Get Instant Quote
    • OEM Custom
    • Fast And Safe Logistics

    90°TEE SW-F-SW

    The 90°TEE SW-F-SW is engineered using Silica Sol Precision Casting Technology, ensuring exceptional strength and durability for demanding applications. Made from high-quality stainless steel, it features impressive physical properties including a tensile strength of 485Mpa and an elongation rate of 35%. This versatile fitting is suitable for a variety of applications, including fuel and oil systems, agricultural processes, and high-temperature fluid delivery systems. Its corrosion resistance and wide temperature range make it ideal for both indoor and outdoor use.

    Features

    High Strength

    With a tensile strength of 485Mpa, this fitting can withstand extreme pressures, ensuring a reliable connection in high-stress environments.

    Corrosion Resistant

    Crafted from stainless steel 304/316, it offers excellent resistance to corrosive substances, making it suitable for harsh environments.

    Easy Installation

    Designed for straightforward installation, the 90°TEE SW-F-SW simplifies assembly and maintenance in various piping systems.

    Wide Temperature Range

    Operational temperatures range from -76°F to +572°F, allowing it to perform effectively in both cold and hot environments.

    Applications

    Fuel & Oil

    Camlock couplings are indispensable in the fuel and oil industry, providing reliable and leak-proof connections for transferring petroleum products. Their quick connect/disconnect capability enhances safety and efficiency during loading and unloading processes.

    Agriculture

    Food and Beverages

    Gas

    Specs

    1/2"

    Product Specifications

    Product CodeLT-02D
    Size1/2"
    TechnologySilica Sol Precision Casting Technology
    Physical PropertyTensile strength: 485Mpa, Yield strength > 205Mpa, Elongation: 35%
    Material We Can DoStainless steel 304/316/CF8/CF8M/1.4308/1.4415
    ThreadBS21 (BSPT&BSPP), ANSI/ASME B1.20.1 (NPT), DIN2999(R/RP), JIS B O203/2(PT), KS BO221/2(PT), etc.
    Temperature-76°F to +572°F（-60℃ to +300°C）
    SurfacePickling and Peeling
    ModelP-008
    ShapeEqual

    Logistics and Certifications

    CertificateISO 9001:2015,IS014001:2015, CE, ROHS, KC, etc..
    PackagePVC bag for each piece.Cartons with pallet/out pallet/wooden boxes
    PortNingbo/Shanghai, China Or other port on request.
    SampleOffer free samples and freight collected
    Delivery DetailAccording to the quantities and specifications of each orderA complete stock to provide fast deliveries for small orders.Normal delivery times is from 30 to 45 days after receiving the deposit
    Generic ApplicationsFuel & Oil, Agriculture, Food and Beverages, Gas
    Get Instant Quote

    Support

    More Support

    Installation Guide

    To install the 90°TEE SW-F-SW, ensure all surfaces are clean and free from debris. Align the fitting with the corresponding pipes, applying appropriate sealant if required. Secure the connections using the specified threading method, ensuring a snug fit to prevent leaks. Once installed, check for any signs of leakage and adjust as needed. Regular maintenance checks are recommended to ensure continued integrity of the connections.

    After-Sales Maintenance

    FAQs

    Looking for answers about 90°TEE SW-F-SW? Visit our FAQ section for detailed information and expert insights.

    Contact Us
    • What materials are available for this fitting?
      The 90°TEE SW-F-SW is available in stainless steel 304 and 316, as well as CF8 and CF8M, providing options for various corrosive environments.
    • What is the temperature range for this fitting?
      This fitting can operate effectively within a temperature range of -76°F to +572°F (-60°C to +300°C), making it versatile for many applications.
    • Is this fitting suitable for high-pressure systems?
      Yes, with a tensile strength of 485Mpa, the 90°TEE SW-F-SW is designed for high-pressure fluid delivery systems, ensuring safety and reliability.
    • What certifications does this product have?
      The fitting is certified under ISO 9001:2015, ISO 14001:2015, CE, ROHS, and KC standards, ensuring compliance with high-quality manufacturing processes.
    • Can I request a sample of this fitting?
      Yes, free samples are available upon request, with freight charges collected. This allows you to assess the quality before making a larger purchase.
