• Stainless Steel

    Material

  • 1/2"

    Size

  • BSPT/BSPP/NPT

    Thread

Pipe Fittings

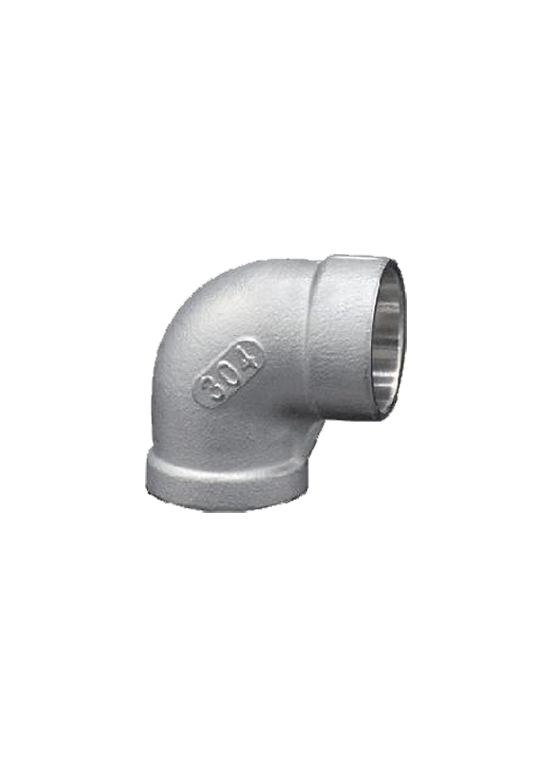

90°Elbow SW-F

The 90° Elbow SW-F fitting is crafted from premium stainless steel, designed for high-pressure and corrosive applications, ensuring durability and reliability.

  • High Strength
  • Corrosion Resistant
  • Wide Temperature Range
    • OEM Custom
    • Fast And Safe Logistics

    90°Elbow SW-F

    The 90° Elbow SW-F fitting is engineered for superior performance in demanding environments, making it ideal for various applications including fuel and oil transport, agriculture, and food processing. With its advanced Silica Sol Precision Casting Technology, this fitting offers exceptional tensile and yield strength, ensuring long-lasting durability. Its corrosion-resistant properties and wide temperature range make it suitable for high-pressure and high-temperature fluid delivery systems. Each piece is meticulously packaged to maintain quality during transport.

    Features

    High Strength

    This fitting boasts a tensile strength of 485Mpa and a yield strength greater than 205Mpa, ensuring it can withstand high-pressure applications.

    Corrosion Resistant

    Constructed from stainless steel 304 and 316, this fitting is designed to resist corrosion, making it suitable for harsh environments.

    Easy Installation

    Engineered for straightforward installation, the 90° Elbow SW-F allows for quick setup without the need for specialized tools.

    Wide Temperature Range

    Capable of operating in temperatures from -76°F to +572°F, this fitting can handle extreme conditions, making it versatile for various systems.

    Applications

    Fuel & Oil

    Camlock couplings are indispensable in the fuel and oil industry, providing reliable and leak-proof connections for transferring petroleum products. Their quick connect/disconnect capability enhances safety and efficiency during loading and unloading processes.

    Agriculture

    Food and Beverages

    Gas

    Specs

    1/2"

    Product Specifications

    Product CodeLT-01D
    Size1/2"
    TechnologySilica Sol Precision Casting Technology
    Physical PropertyTensile strength: 485Mpa, Yield strength > 205Mpa, Elongation: 35%
    Material We Can DoStainless steel 304/316/CF8/CF8M/1.4308/1.4411
    ThreadBS21 (BSPT&BSPP), ANSI/ASME B1.20.1 (NPT), DIN2999(R/RP), JIS B O203/2(PT), KS BO221/2(PT), etc.
    Temperature-76°F to +572°F(-60℃ to +300°C)
    SurfacePickling and Peeling
    ModelP-004
    ShapeEqual

    Logistics and Certifications

    CertificateISO 9001:2015,IS014001:2015, CE, ROHS, KC, etc..
    PackagePVC bag for each piece.Cartons with pallet/out pallet/wooden boxes
    PortNingbo/Shanghai, China Or other port on request.
    SampleOffer free samples and freight collected
    Delivery DetailAccording to the quantities and specifications of each orderA complete stock to provide fast deliveries for small orders.Normal delivery times is from 30 to 45 days after receiving the deposit
    Generic ApplicationsFuel & Oil, Agriculture, Food and Beverages, Gas
    Get Instant Quote

    Support

    More Support

    Installation Guide

    To install the 90° Elbow SW-F fitting, first ensure all surfaces are clean and free from debris. Align the fitting with the desired piping, ensuring proper orientation. Apply appropriate thread sealant to the male threads before screwing it in place. Tighten to the manufacturer’s recommendations using a wrench, ensuring not to overtighten to avoid damage. Finally, check for leaks by running a system pressure test before full operation.

    After-Sales Maintenance

    FAQs

    Looking for answers about 90°Elbow SW-F? Visit our FAQ section for detailed information and expert insights.

    Contact Us
    • What materials are used in this fitting?
      The 90° Elbow SW-F is made from high-quality stainless steel, specifically ASTM A351 CF8 (304) and ASTM A351M CF8M (316), ensuring durability and corrosion resistance.
    • What are the temperature limits?
      This fitting can operate effectively within a temperature range of -76°F to +572°F (-60°C to +300°C), making it suitable for high-temperature applications.
    • Is this fitting easy to install?
      Yes, the 90° Elbow SW-F is designed for easy installation. It requires no special tools, ensuring a quick and hassle-free setup for your piping system.
    • Can I get a sample before purchasing?
      Absolutely! We offer free samples of the 90° Elbow SW-F, with freight collected. This allows you to evaluate the product before making a larger commitment.
    • What certifications does this product have?
      The 90° Elbow SW-F is certified with ISO 9001:2015, ISO 14001:2015, CE, ROHS, and KC, ensuring compliance with international quality and safety standards.
