Rustfritt stål
Materiale
1/4"-4"
Størrelse
BS21/ANSI/ASME/NPT
Tråd
Ventiler og filtre

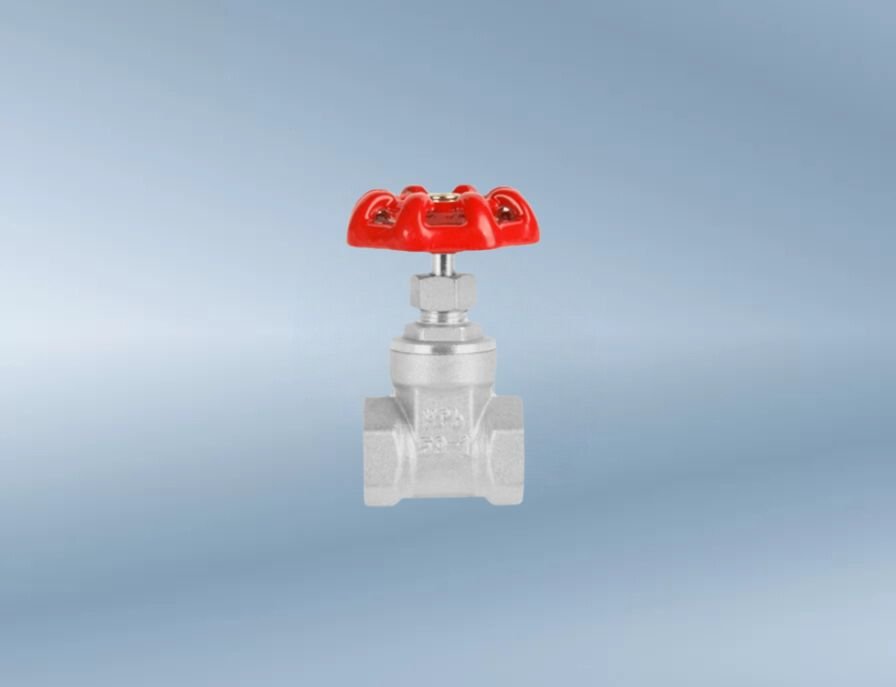

Kuleportventil i rustfritt stål
Stainless steel ball gate valve is a valve made of stainless steel that combines the characteristics of ball valve and gate valve. It is usually used for cutting off or regulating the medium in the pipeline system. It has excellent high pressure resistance, high temperature resistance and impact resistance.
- Excellent Corrosion Resistance
- Wide Applicable Temperature Range
- Utmerket tetningsytelse
- OEM-tilpasset
- Rask og sikker logistikk
Kuleportventil i rustfritt stål
The stainless steel ball gate valve combines the characteristics of the ball valve and gate valve and adopts a spherical flow channel design inside, which makes the internal medium flow more smoothly and can effectively reduce the pressure loss of internal transmission. Such a design can greatly improve the efficiency of pipeline system transmission.
The stainless steel ball gate valve is mainly made of stainless steel 304/316/316L, which has excellent resistance to corrosive media, so it performs well when transmitting such media, ensuring that the valve can operate stably under harsh working conditions. In addition, stainless steel ball gate valve also has excellent corrosion resistance, sealing, and durability, and are widely used in the chemical industry, food and pharmaceutical industry, oil and gas industry, and marine engineering industry.
Funksjoner
Small Fluid Resistance
The stainless steel ball gate valve has a straight-through design inside, which has small fluid resistance and can reduce the pressure on the fluid during transmission, thus improving transmission efficiency.
Bredt spekter av bruksområder
The stainless steel ball gate valve has a wide range of applications. It is not only used in water treatment, food processing, and other fields but can also be used for the transmission of media such as oil and natural gas.
Simple Operation and Installation
It uses a handle control, and the opening and closing operations can be completed by rotating 90°. It is very convenient and fast, supports flange and threaded connections, and the installation time is relatively short.
Excellent Pressure Resistance
The stainless steel ball gate valve is made by precision casting technology, with a working pressure of 1000PSI-2000PSI and excellent high-pressure resistance.
Bruksområder
Camlock-koblinger er uunnværlige i drivstoff- og oljeindustrien, og gir pålitelige og lekkasjesikre koblinger for overføring av petroleumsprodukter. Deres hurtigkoblings-/frakoblingsfunksjon forbedrer sikkerheten og effektiviteten under laste- og losseprosesser.
I landbruket er camlock-koblinger avgjørende for vanningssystemer, kjemisk sprøyting og overføring av gjødsel. De muliggjør raske og sikre slangekoblinger, slik at bønder kan bytte utstyr raskt og forbedre driftseffektiviteten.

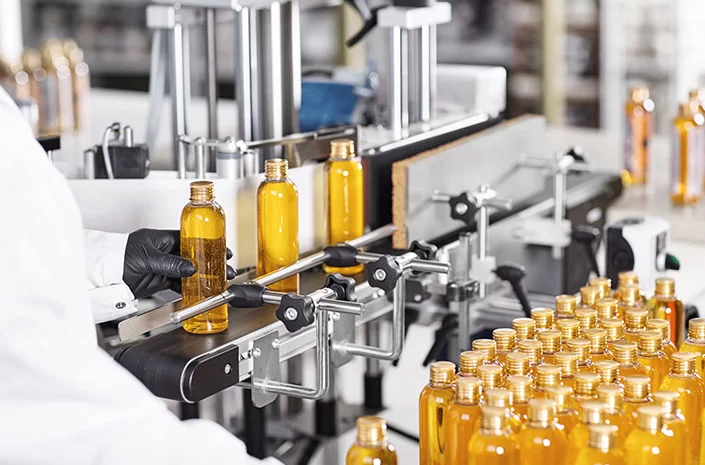

Camlock-koblinger laget av næringsmiddelgodkjente materialer er avgjørende i næringsmiddel- og drikkevareindustrien. De sikrer hygienisk overføring av forbruksvæsker som juice, meieriprodukter og sirup, og overholder strenge hygieniske standarder for å forhindre kontaminering.

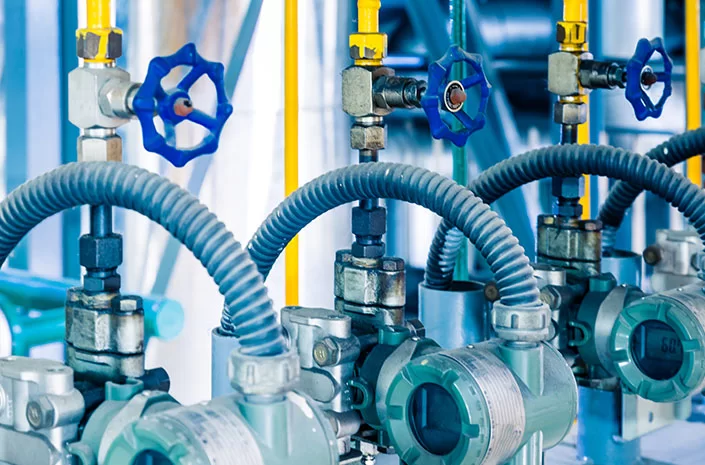

I gassindustrien gir camlock-koblinger sikre og effektive koblinger for overføring av gasser som LPG og naturgass. Den robuste konstruksjonen sikrer en sikker tetning, noe som minimerer risikoen for lekkasjer og forbedrer sikkerheten i gasshåndteringsapplikasjoner.
Spesifikasjoner
Produktspesifikasjoner
| Produktkode | LT-127A |
| Teknologi | Precision Casting/CNC Precision Machining/Heat Treatment |
| Fysisk eiendom | Excellent High Pressure Resistance, High Temperature Resistance and Impact Resistance |
| Materiale vi kan lage | Stainless Steel 304/316/316L |
| Tråd | BS21 (BSPT og BSPP), ANSI/ASME B1.20.1 (NPT), DIN2999 (R/RP), JIS B O203/2 (PT), KS BO221/2 (PT), osv. |
| Temperatur (statisk tilstand) | -20°C（-4°F） to 250°C（482°F） |
| Flate | Polishing/Sandblasting/Electrolytic Polishing |
| Modell | V-026 |
| Form | Lik |
Logistikk og sertifiseringer
| Sertifikat | ISO 9001:2015, IS014001:2015, CE, ROHS, KC, osv. |
| Pakke | PVC-pose for hvert stykke. Kartonger med pall/ut pall/trekasser |
| Havn | Ningbo/Shanghai, Kina eller annen havn på forespørsel. |
| Prøve | Tilbyr gratis vareprøver og frakt innkrevd |
| Leveringsdetaljer | I henhold til mengder og spesifikasjoner for hver bestilling. Komplett lager for å gi rask levering for små bestillinger. Normal leveringstid er fra 30 til 45 dager etter mottatt depositum. |
| Generiske applikasjoner | Olje og gass, kjemikalier, mat og drikke, landbruksvanning |
Støtte
If it is a threaded connection, the stainless steel ball gate valve only needs to be screwed directly into the pipe interface that matches its thread, and tightened manually or with the help of tools, which is very convenient to install. If it is a flange connection, it needs to be connected with a flange plate, which is suitable for large-diameter valves and has a better sealing effect. If it is a welded connection, the process is more complicated and welding is required at the interface. This connection method is suitable for systems with higher connection requirements.
Hos SSABP er vi stolte av å levere camlock-koblinger av høy kvalitet. For å sikre at du får optimal ytelse og levetid fra produktene våre, tilbyr vi omfattende vedlikeholdstjenester etter salg. Teamet vårt er klare til å hjelpe med eventuelle tekniske spørsmål, gi vedlikeholdstips eller råd om feilsøking. Vi leverer også reservedeler og servicealternativer for å opprettholde holdbarheten til camlock-produktene dine. Din tilfredshet er vår forpliktelse, og supportteamet vårt er alltid her for å holde driften din i gang knirkefritt lenge etter kjøpet.
Vanlige spørsmål
Looking for answers about Stainless Steel Ball Gate Valve? Visit our FAQ section for detailed information and expert insights.
Can stainless steel ball gate valves be used in drinking water systems?
Yes, it is recommended to choose stainless steel 304 or stainless steel 316 as raw material, and food-grade raw material as sealing material.
How to determine the switch direction?
Generally, clockwise is off and counterclockwise is on. If you have any questions, it is best to refer to the product instructions.
What fluids are suitable for stainless steel ball gate valves?
A stainless steel ball gate valve is suitable for transmitting water, oil, natural gas, corrosive liquids, chemical liquids, gases, etc.
What should I pay attention to during installation?
During installation, you need to ensure that the inside of the pipe and valve are clean and free of impurities. When connecting, pay attention to using appropriate seals and do not use excessive force to cause damage.
How to determine if there is a leak?
If it is a liquid, you can observe whether there is leakage. If it is other media, you can also perform a pressure test to check whether the sealing performance is intact.
