PVC

材料

1/2“-6英寸

尺寸

BS21/NPT/DIN

管件

PVC Cross

PVC cross is often used to connect four pipes in different directions in the pipeline system and to divert water flow to different directions. It is very flexible to use, with more transmission directions to choose from, and is suitable for optimizing pipeline layout.

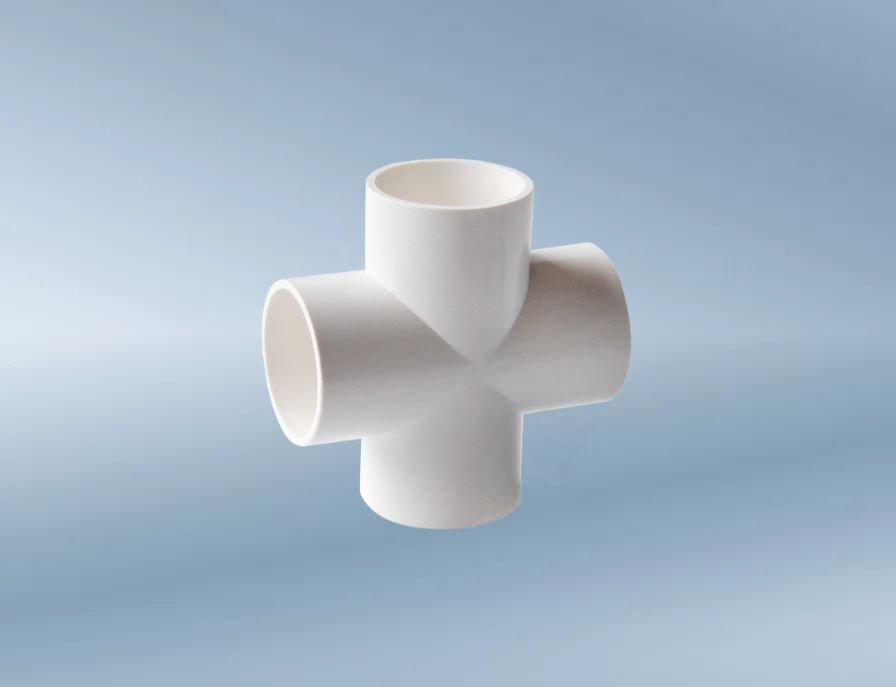

PVC Cross

PVC cross is a pipe connector used in pipe systems. It has four openings, so the fluid can be diverted or merged in four directions, improving the layout flexibility of the pipe system. It has excellent mechanical strength and pressure resistance, and can be used in most pressure pipe systems, and can withstand a certain degree of environmental and fluid pressure.



PVC cross has excellent corrosion resistance, portability, and easy installation. These features and advantages make it widely used in municipal water supply, household water, agricultural irrigation, chemical power and other fields, playing an important role and providing important guarantees for safe and reliable pipe connections. PVC cross also has good durability. Normal PVC pipe fittings can be used for many years without frequent maintenance and replacement, which greatly improves the cost of maintenance and replacement and has a high cost performance.

pvc-cross

特徵

使用壽命長

PVC cross has good durability and weather resistance. Under normal use conditions, it can be used for many years and has a long service life. There will be basically no problems in a short time.

Environmentally Friendly and Non-Toxic

The manufacturing material of PVC cross, PVC, complies with ANSI and NSF standards, so it can be used in drinking water pipe systems. It is environmentally friendly and non-toxic and will not pollute the water quality.

耐腐蝕

The raw material of PVC cross is high-quality PVC, which has good corrosion resistance and is suitable for medium and low corrosive pipeline systems and can withstand corrosion from some corrosive substances.

Small Fluid Resistance

The inner wall of the PVC cross is smooth, and the resistance encountered by the fluid and the medium when passing through is small, which can effectively increase the flow rate of transmission, increase the flow rate of medium transmission, and achieve the purpose of energy saving.

pvc-cross-png

應用

燃料和石油

凸輪鎖接頭是燃油和石油產業不可或缺的零件,可為石油產品的輸送提供可靠且防洩漏的連接。其快速連接/斷開功能可提高裝卸過程的安全性和效率。

農業

在農業領域,凸輪鎖接頭對於灌溉系統、化學噴灑和肥料輸送至關重要。它們能夠快速安全地連接軟管,使農民能夠快速更換設備並提高作業效率。

食品和飲料

採用食品級材料製成的凸輪鎖定接頭在食品和飲料行業中至關重要。它們確保果汁、乳製品和糖漿等消耗性液體的衛生輸送,並符合嚴格的衛生標準,防止污染。


氣體

在天然氣產業,凸輪鎖定接頭為液化石油氣和天然氣等氣體輸送提供安全且有效率的連接。其堅固的結構確保了牢固的密封,最大限度地降低了洩漏風險,並提高了氣體處理應用的安全性。

規格

產品規格
產品代碼LT-41A
科技Injection Molding/Extrusion Molding
物理性質拉伸強度:≥45MPa,抗衝擊性能好
我們能做的材料PVC
BS21(BSPT 和 BSPP)、ANSI/ASME B1.20.1(NPT)、DIN2999(R/RP)、JIS B O203/2(PT)、KS BO221/2(PT)等。
溫度(靜態)常規PVC:-15°C(5°F)至60°C(140°F),CPVC(高溫型):可耐90°C(194°F)以上
表面Polishing/Sandblasting/UV-Resistant Coating
模型P-079
形狀平等的
物流和認證
證書ISO 9001:2015、IS014001:2015、CE、ROHS、KC 等。
包裹每件 PVC 袋。附托盤/外托盤/木箱的紙箱
港口中國寧波/上海或其他根據要求的港口。
樣本提供免費樣品並收取運費
外送詳情根據每個訂單的數量和規格,完整的庫存可為小訂單提供快速交貨。正常交貨時間為收到訂金後 30 至 45 天
通用應用程式石油天然氣、化工、食品飲料、農業灌溉
安裝指南

If it is welding, just align the pipe and the PVC cross at the interface, and then use the equipment to weld the two tightly. It is suitable for systems that do not require frequent disassembly and assembly. If it is a threaded connection, clean the pipe and the PVC cross, align the thread grooves of the two in the right direction, rotate and tighten, and the installation is completed. If it is a socket connection, you need to use a special PVC glue for bonding, ensure that it is applied tightly without gaps to prevent leakage.

售後維護

在 SSABP,我們很自豪地提供高品質的凸輪鎖式聯軸器。為了確保您的產品獲得最佳性能和長久使用壽命,我們提供全面的售後維護服務。我們的團隊隨時準備好解答任何技術問題,提供維護技巧或故障排除建議。我們還提供替換零件和維修選項,以幫助維護您的凸輪鎖式產品的耐用性。您的滿意是我們的承諾,我們的支援團隊將始終為您服務,確保您在購買後也能長期順暢運作。

常見問題解答

Looking for answers about PVC Cross? Visit our FAQ section for detailed information and expert insights.

Can PVC cross be used for hot water pipes?

The applicable temperature range of ordinary PVC cross is -15℃ to 60℃, which is not suitable for hot water pipes. It is recommended to use CPPVC cross.

Use appropriate PVC glue or sealant at the joint according to different connection methods, and ensure that the insertion depth meets the standard. If it is a threaded connection, you can use raw tape to reinforce the seal.

PVC cross is commonly used in household and municipal drainage systems, agricultural irrigation systems, chemical pipeline systems, etc.

PVC cross mainly comes in white, gray, blue and other colors, and can be customized if required.

PVC cross is not suitable for high temperature system. Its temperature resistance is limited and it is mainly suitable for the temperature range of -15℃ to 60℃.
