Нержавеющая сталь
Материал
1/4" × 1/4" × 1/4" to 3" × 3" × 3"
Размер
BS21/NPT/DIN
Thread
Трубная арматура

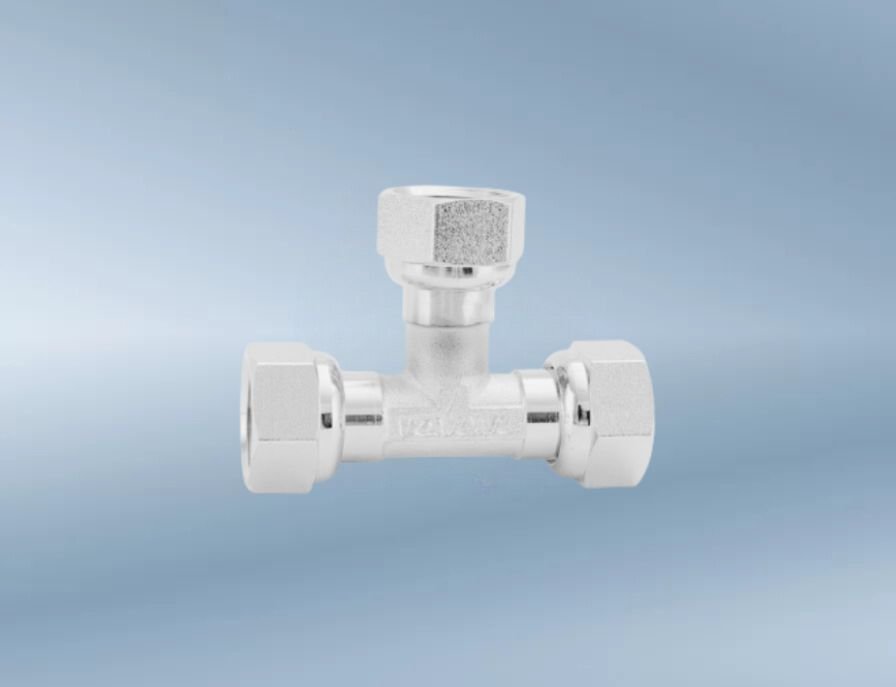

Union Tee
Union tee is a pipe connector with three channels in a “T” shape. It adopts a detachable connection method with a flexible joint, which does not require welding or crimping and is easy to disassemble and repair.
- Simple Structure
- Easy to Install and Maintain
- Strong Adaptability
- OEM Custom
- Fast And Safe Logistics
Union Tee
Union tee is a flexible connection method, which is very convenient to disassemble and install, making it widely used in piping systems that require regular inspection, maintenance and replacement of accessories, greatly saving time and labor costs. Since union tee is mostly made of stainless steel, carbon steel, etc., it has excellent corrosion resistance and high strength, and is widely used in strict fields such as seawater and chemicals.
Union tee also has excellent sealing performance, because it is equipped with a sealing ring or gasket, which can effectively ensure the sealing effect of the connection and avoid leakage. Even in a high-pressure environment, it can maintain a stable seal. The structure and material selection of union tee make it suitable for various types of piping systems, which can meet the needs of various different pipelines and are widely used in various industrial fields.
Features
Quick Assembly and Disassembly
One of the characteristics of the union tee is that it allows quick assembly and disassembly. It can be easily connected and disassembled by twisting, and is widely used in occasions that require frequent assembly and disassembly.
Applicable to A Variety of Pipes
Union tee can be applied to pipes of different materials and sizes. It has high applicability and can be used in pipes of different materials such as stainless steel pipes and carbon steel pipes.
Resistant to High Pressure and Corrosion
Union tees are usually made of high-strength, high-quality materials and can be used in high-temperature, high-pressure and highly corrosive environments such as chemicals, natural gas, etc.
Excellent Sealing Performance
Union tees are usually equipped with sealing rings, which can provide stronger sealing performance and reduce the leakage of the transmitted fluid or gas. Therefore, it has excellent sealing performance and is suitable for use in systems with high sealing requirements.
Приложения
Camlock couplings are indispensable in the fuel and oil industry, providing reliable and leak-proof connections for transferring petroleum products. Their quick connect/disconnect capability enhances safety and efficiency during loading and unloading processes.
In agriculture, camlock couplings are essential for irrigation systems, chemical spraying, and transferring fertilizers. They enable quick and secure hose connections, allowing farmers to change equipment swiftly and improve operational efficiency.
Camlock couplings made from food-grade materials are vital in the food and beverage industry. They ensure the hygienic transfer of consumable liquids like juices, dairy products, and syrups, adhering to strict sanitary standards to prevent contamination.
In the gas industry, camlock couplings provide safe and efficient connections for transferring gases such as LPG and natural gas. Their robust construction ensures a secure seal, minimizing the risk of leaks and enhancing safety in gas handling applications.
Specs
Product Specifications
| Product Code | LT-40A |
| Technology | Casting/Forging/Stamping |
| Physical Property | Tensile Strength: >400MPa, Yield Strength: About 250MPa |
| Material We Can Do | Stainless Steel/Carbon Steel/Copper Alloy |
| Thread | BS21 (BSPT&BSPP), ANSI/ASME B1.20.1 (NPT), DIN2999(R/RP), JIS B O203/2(PT), KS BO221/2(PT), etc. |
| Temperature (Static State) | -20℃（-4°F） to 180℃（356°F） |
| Surface | Galvanizing/Polishing/Passivation |
| Model | P-071 |
| Shape | Equal |
Logistics and Certifications
| Certificate | ISO 9001:2015,IS014001:2015, CE, ROHS, KC, etc.. |
| Package | PVC bag for each piece.Cartons with pallet/out pallet/wooden boxes |
| Port | Ningbo/Shanghai, China Or other port on request. |
| Sample | Offer free samples and freight collected |
| Delivery Detail | According to the quantities and specifications of each orderA complete stock to provide fast deliveries for small orders.Normal delivery times is from 30 to 45 days after receiving the deposit |
| Generic Applications | Oil and Gas, Chemical, Food and Beverage, Agricultural Irrigation |
Support
The installation method of union tee is very simple, mainly through thread connection. When installing, just screw the interface connection of the tee into the corresponding pipe or system and tighten it, without the help of extra tools.
At SSABP, we're proud to deliver high-quality camlock couplings. To ensure you get optimal performance and longevity from our products, we offer comprehensive after-sales maintenance services. Our team is ready to assist with any technical queries, provide maintenance tips, or offer troubleshooting advice. We also supply replacement parts and servicing options to help maintain the durability of your camlock products. Your satisfaction is our commitment, and our support team is always here to keep your operations running smoothly long after your purchase.
Часто задаваемые вопросы
Looking for answers about Union Tee? Visit our FAQ section for detailed information and expert insights.
What industries are union tees suitable for?
Union tees are widely used in industries such as oil, gas, electricity and chemicals, and are highly regarded in environments that require frequent disassembly and assembly.
How is the sealing performance of the union tee?
The union tee comes with a sealing ring, which can provide a stable and reliable sealing effect to ensure that there will be no leakage.
Why choose union tee instead of welding tee?
Union tee is more flexible and convenient to disassemble and assemble than welding tee, and is suitable for systems that require regular inspection, replacement and maintenance. Welding tee is more suitable for permanent connection occasions.
Is the union tee suitable for use in corrosive environments?
Of course. The material used to make the union tee is corrosion-resistant, so it can be used stably in corrosive environments.
Can union tees be used for both liquid and gas pipelines?
Yes, union tees are suitable for both liquid and gas pipelines. Whether it is natural gas, water, oil, etc., as long as the appropriate manufacturing materials are selected, union tees are applicable.
