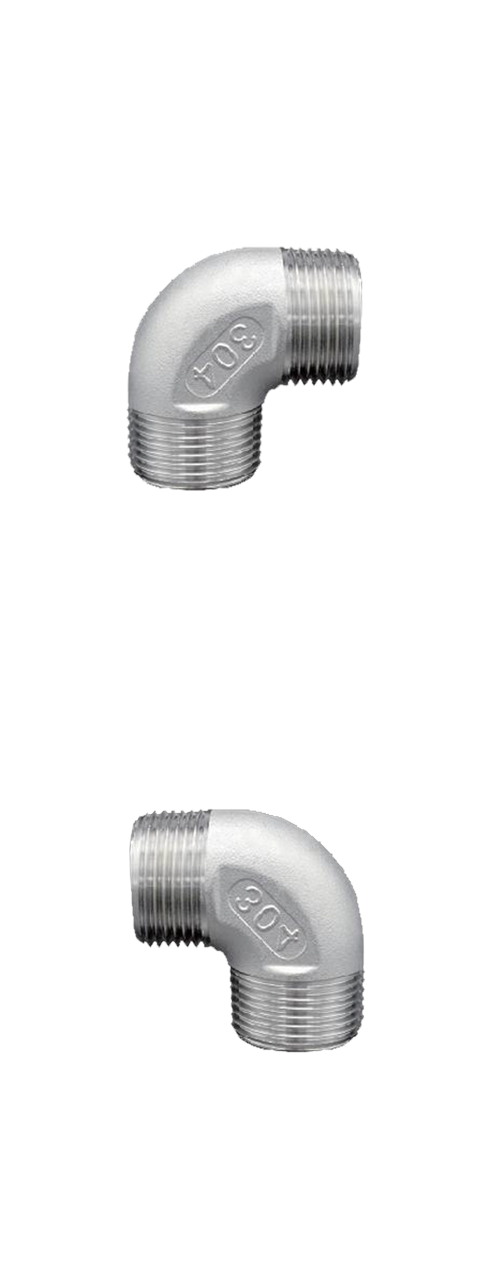

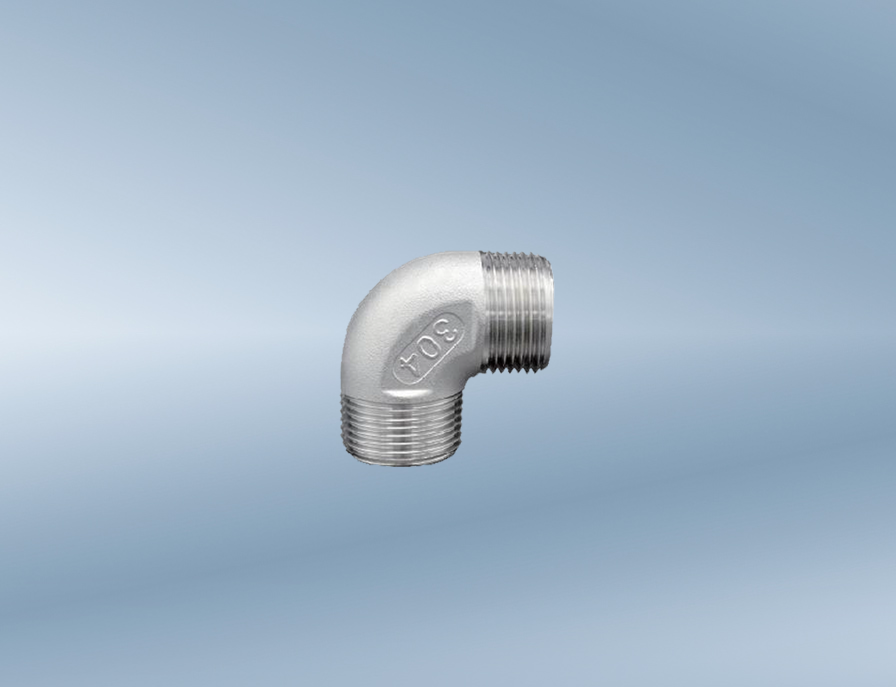

90°Elbow M-M

Aço inoxidável

Material

1/4"-2"

Tamanho

BS21/ANSI/DIN

Thread

Conexões de tubos

The 90° Elbow M-M is a high-strength pipe fitting designed for seamless fluid delivery in various applications. Its robust construction ensures reliability and durability.

90°Elbow M-M

The 90° Elbow M-M is engineered using advanced Silica Sol Precision Casting Technology, ensuring exceptional quality and performance. This pipe fitting is suitable for a wide range of applications, including fuel and oil delivery, agriculture, and high-pressure systems. With a tensile strength of 485 MPa and yield strength over 205 MPa, it guarantees reliability under stress. Its corrosion-resistant materials, available in stainless steel 304 and 316, allow it to withstand harsh environments. Designed for easy installation and maintenance, it is an excellent choice for both industrial and domestic use.

Features

High Strength

With a tensile strength of 485 MPa and yield strength over 205 MPa, this elbow fitting ensures durability and reliability in high-pressure applications.

Corrosion Resistant

Made from high-quality stainless steel, this fitting is designed to resist oxidation and corrosion, making it ideal for harsh environments.

Easy Installation

The 90° design allows for straightforward installation, minimizing labor time and facilitating maintenance in various systems.

Wide Temperature Range

Operating efficiently between -76°F to +572°F, this fitting can handle extreme temperature variations in multiple applications.

Aplicações

Fuel & Oil

Camlock couplings are indispensable in the fuel and oil industry, providing reliable and leak-proof connections for transferring petroleum products. Their quick connect/disconnect capability enhances safety and efficiency during loading and unloading processes.

Agricultura

In agriculture, camlock couplings are essential for irrigation systems, chemical spraying, and transferring fertilizers. They enable quick and secure hose connections, allowing farmers to change equipment swiftly and improve operational efficiency.

Food and Beverages

Camlock couplings made from food-grade materials are vital in the food and beverage industry. They ensure the hygienic transfer of consumable liquids like juices, dairy products, and syrups, adhering to strict sanitary standards to prevent contamination.

Gas

In the gas industry, camlock couplings provide safe and efficient connections for transferring gases such as LPG and natural gas. Their robust construction ensures a secure seal, minimizing the risk of leaks and enhancing safety in gas handling applications.

Specs

Product Specifications

Product Code	LT-01C
Technology	Silica Sol Precision Casting Technology
Physical Property	Tensile strength: 485Mpa, Yield strength > 205Mpa, Elongation: 35%
Material We Can Do	Stainless steel 304/316/CF8/CF8M/1.4308/1.4410
Thread	BS21 (BSPT&BSPP), ANSI/ASME B1.20.1 (NPT), DIN2999(R/RP), JIS B O203/2(PT), KS BO221/2(PT), etc.
Temperature (Static State)	-76°F to +572°F（-60℃ to +300°C）
Surface	Pickling and Peeling
Model	P-003
Shape	Equal

Logistics and Certifications

Certificate	ISO 9001:2015,IS014001:2015, CE, ROHS, KC, etc..
Package	PVC bag for each piece.Cartons with pallet/out pallet/wooden boxes
Port	Ningbo/Shanghai, China Or other port on request.
Sample	Offer free samples and freight collected
Delivery Detail	According to the quantities and specifications of each orderA complete stock to provide fast deliveries for small orders.Normal delivery times is from 30 to 45 days after receiving the deposit
Generic Applications	Oil and Gas, Chemical, Food and Beverage, Agricultural Irrigation

Support

Mais sobre nós

Installation Guide

To install the 90° Elbow M-M, ensure all surfaces are clean and free of debris. Align the fitting correctly with the pipeline and tighten securely using the appropriate tools. Use thread sealant as needed to prevent leaks. After installation, check for proper alignment and stability before operating the system. Regularly inspect the fitting for signs of wear or corrosion to maintain optimal performance.

After-Sales Maintenance

At SSABP, we're proud to deliver high-quality camlock couplings. To ensure you get optimal performance and longevity from our products, we offer comprehensive after-sales maintenance services. Our team is ready to assist with any technical queries, provide maintenance tips, or offer troubleshooting advice. We also supply replacement parts and servicing options to help maintain the durability of your camlock products. Your satisfaction is our commitment, and our support team is always here to keep your operations running smoothly long after your purchase.

Perguntas frequentes

Looking for answers about 90°Elbow M-M? Visit our FAQ section for detailed information and expert insights.

What sizes are available for this product?

The 90° Elbow M-M is available in sizes ranging from 1/4″ to 2″, accommodating various piping needs in different applications.

What materials can be selected?

You can choose from stainless steel 304 and 316, as well as other materials like CF8 and CF8M, depending on your specific application requirements.

What certifications does this product have?

This product is certified with ISO 9001:2015, ISO 14001:2015, CE, ROHS, and KC, ensuring it meets high-quality and safety standards.

How does this fitting handle high pressure?

With a tensile strength of 485 MPa, the 90° Elbow M-M is designed to withstand high pressures and is suitable for demanding applications such as hydraulic systems.

Are samples available before purchase?

Yes, we offer free samples of the 90° Elbow M-M upon request, with freight costs collected. This allows you to evaluate the product before placing a larger order.
