90°Elbow F-F

Aço inoxidável

Material

1/8"-4"

Tamanho

BSPT/BSPP/NPT

Thread

Conexões de tubos

The 90° Elbow F-F fitting is a versatile pipe connector designed for high-pressure and high-temperature applications, ensuring reliability and safety in fluid delivery systems.

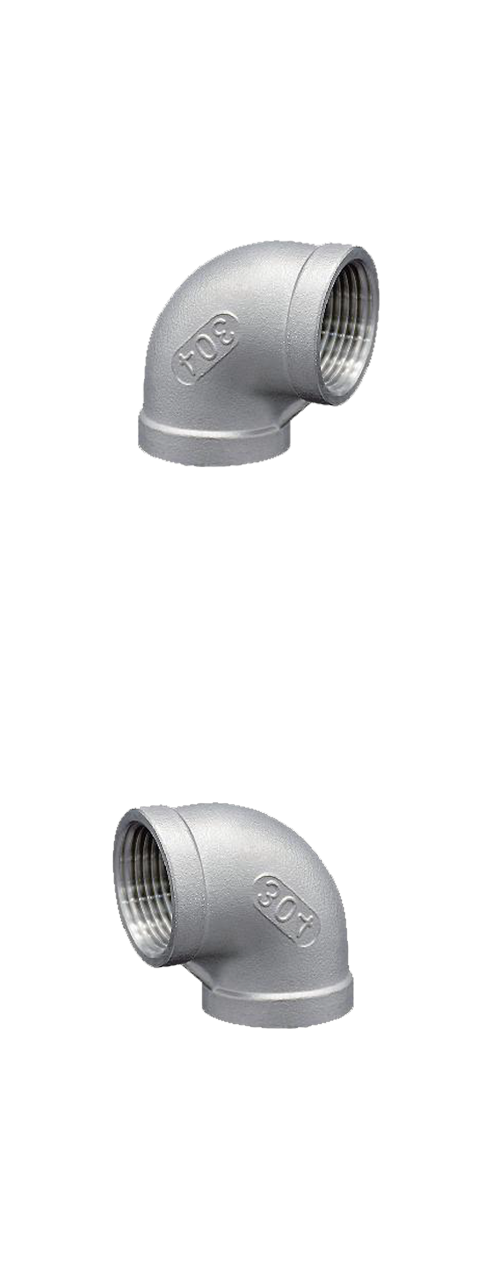

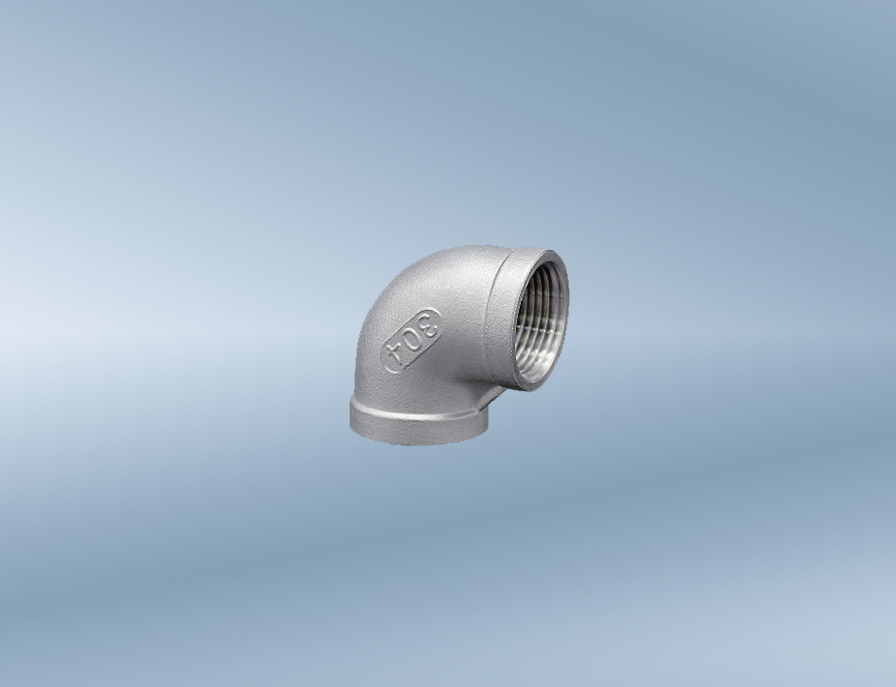

90°Elbow F-F

The 90° Elbow F-F fitting is engineered using Silica Sol Precision Casting Technology, ensuring superior quality and performance. Made from premium stainless steel (304 and 316), this fitting boasts impressive tensile and yield strength, making it ideal for high-pressure and corrosive environments. It is suitable for various applications, including fuel and oil transport, food and beverage processing, and hydraulic systems. The fitting’s design facilitates easy installation and maintenance, enhancing efficiency while maintaining safety standards.

Features

High Strength

With a tensile strength of 485 Mpa and yield strength over 205 Mpa, this elbow fitting can withstand demanding conditions without compromising safety.

Corrosion Resistant

Constructed from stainless steel 304 and 316, the fitting is resistant to corrosion, making it suitable for harsh environments and chemical transport.

Easy Installation

Designed for quick and straightforward installation, this elbow fitting reduces downtime and labor costs in various piping systems.

Wide Temperature Range

Able to handle temperatures from -76°F to +572°F (-60°C to +300°C), this fitting is versatile for both low and high temperature applications.

Aplicações

Fuel & Oil

Camlock couplings are indispensable in the fuel and oil industry, providing reliable and leak-proof connections for transferring petroleum products. Their quick connect/disconnect capability enhances safety and efficiency during loading and unloading processes.

Agricultura

In agriculture, camlock couplings are essential for irrigation systems, chemical spraying, and transferring fertilizers. They enable quick and secure hose connections, allowing farmers to change equipment swiftly and improve operational efficiency.

Food and Beverages

Camlock couplings made from food-grade materials are vital in the food and beverage industry. They ensure the hygienic transfer of consumable liquids like juices, dairy products, and syrups, adhering to strict sanitary standards to prevent contamination.

Gas

In the gas industry, camlock couplings provide safe and efficient connections for transferring gases such as LPG and natural gas. Their robust construction ensures a secure seal, minimizing the risk of leaks and enhancing safety in gas handling applications.

Specs

Product Specifications

Product Code	LT-01A
Technology	Silica Sol Precision Casting Technology
Physical Property	Tensile strength: 485Mpa, Yield strength > 205Mpa, Elongation: 35%
Material We Can Do	Stainless steel 304/316/CF8/CF8M/1.4308/1.4408
Thread	BS21 (BSPT&BSPP), ANSI/ASME B1.20.1 (NPT), DIN2999(R/RP), JIS B O203/2(PT), KS BO221/2(PT), etc.
Temperature (Static State)	-76°F to +572°F（-60℃ to +300°C）
Surface	Pickling and Peeling
Model	P-001
Shape	Equal

Logistics and Certifications

Certificate	ISO 9001:2015,IS014001:2015, CE, ROHS, KC, etc..
Package	PVC bag for each piece.Cartons with pallet/out pallet/wooden boxes
Port	Ningbo/Shanghai, China Or other port on request.
Sample	Offer free samples and freight collected
Delivery Detail	According to the quantities and specifications of each orderA complete stock to provide fast deliveries for small orders.Normal delivery times is from 30 to 45 days after receiving the deposit
Generic Applications	Oil and Gas, Chemical, Food and Beverage, Agricultural Irrigation

Support

Mais sobre nós

Installation Guide

Before installation, ensure that the pipe ends are clean and free from debris. Apply appropriate sealant to the threads if necessary. Align the elbow fitting with the corresponding pipes and hand-tighten first to avoid cross-threading. Use a wrench to tighten further, ensuring a snug fit without over-torquing to prevent damage. Always check for leaks after installation by conducting a pressure test, and ensure that the system is safely operating within the specified temperature range.

After-Sales Maintenance

At SSABP, we're proud to deliver high-quality camlock couplings. To ensure you get optimal performance and longevity from our products, we offer comprehensive after-sales maintenance services. Our team is ready to assist with any technical queries, provide maintenance tips, or offer troubleshooting advice. We also supply replacement parts and servicing options to help maintain the durability of your camlock products. Your satisfaction is our commitment, and our support team is always here to keep your operations running smoothly long after your purchase.

Perguntas frequentes

Looking for answers about 90°Elbow F-F? Visit our FAQ section for detailed information and expert insights.

What sizes does the elbow fitting come in?

The 90° Elbow F-F fitting is available in sizes ranging from 1/8″ to 4″, accommodating various piping systems and applications.

Is this fitting suitable for high temperatures?

Yes, this fitting can handle temperatures from -76°F to +572°F (-60°C to +300°C), making it suitable for high-temperature fluid delivery systems.

What materials are used in this fitting?

This elbow fitting is made from high-quality stainless steel, specifically ASTM A351 CF8 (304) and ASTM A351M CF8M (316), ensuring durability and corrosion resistance.

Does it come with a warranty?

Yes, the 90° Elbow F-F fitting typically comes with a warranty covering manufacturing defects. Please check with your supplier for specific warranty details.

Can I get a sample before purchasing?

Absolutely! We offer free samples of the elbow fitting, with freight costs collected. This allows you to assess the quality before making a larger investment.
