Aço inoxidável
Material
1/8"-4"
Tamanho
BS21/NPT/DIN
Fio
Conexões de tubos

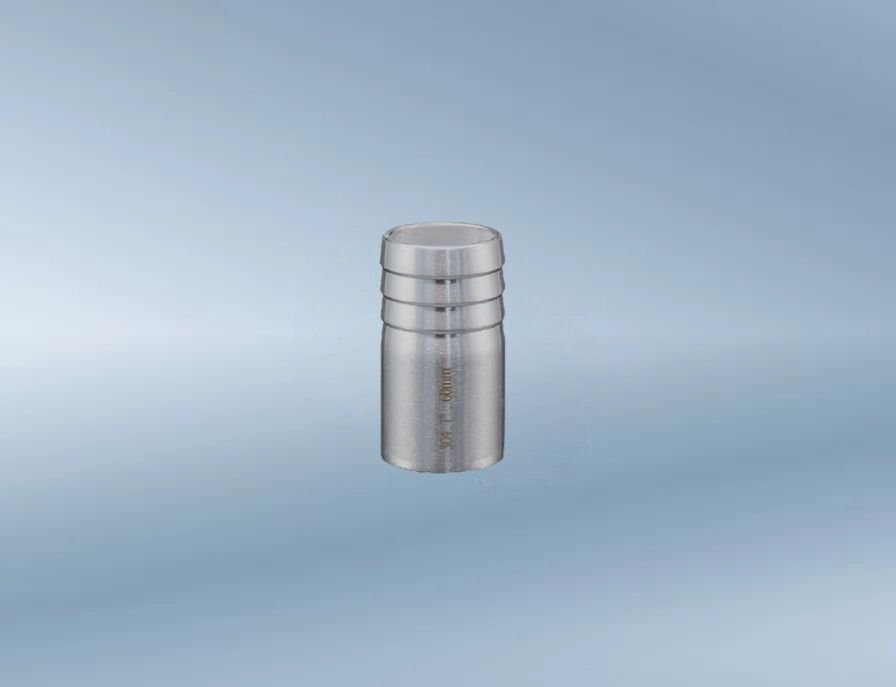

Weld Hose Nipple
Weld Hose Nipple is a joint that firmly connects hoses and pipe systems through welding. It can withstand high pressure and high temperature and is suitable for applications with high strength and harsh working conditions.
- Corrosion-Resistant
- Easy to Maintain
- Highly Adaptable
- OEM personalizado
- Logística Rápida e Segura
Weld Hose Nipple
A welded hose nipple is a fitting used to connect hoses and piping systems. It typically features a threaded end and a welded connection on the other. This fitting is commonly used to securely connect hoses to pipes or equipment, ensuring the safe and efficient transfer of fluids, gases, or other media. Welded hose nipples are often used in high-pressure or high-temperature environments. Their welded construction provides greater connection strength than traditional threaded connections, making them suitable for demanding industrial applications.
The welded hose nipple utilizes a high-strength welded design, offering strong corrosion and high-temperature resistance, and can withstand a wide range of operating environments, from low to high temperatures. It is widely used in hydraulic systems, petrochemicals, natural gas, and metallurgy, and is particularly well-suited for piping systems that require long-term, stable operation and withstand high pressures.

Características
Welded Connections
Welded hose nips can be directly welded to pipes or equipment, providing a stronger hold and suitable for high-stress environments.
Excellent High-Pressure Resistance
Our welded hose nips are made of high-strength materials and utilize welding technology to enhance the strength of the joints, allowing them to withstand higher pressures.
Excellent Corrosion Resistance
Due to its welded connections and high-quality materials, the Weld Hose Nipple offers excellent corrosion resistance and performs well in acidic and alkaline environments.
Widely Adaptable
The Weld Hose Nipple is compatible with a variety of pipe materials and can connect to various hoses and equipment, meeting diverse connection requirements.

Aplicações




Os engates Camlock são indispensáveis na indústria de combustíveis e petróleo, proporcionando conexões confiáveis e à prova de vazamentos para a transferência de produtos petrolíferos. Sua capacidade de conexão/desconexão rápida aumenta a segurança e a eficiência durante os processos de carga e descarga.
Na agricultura, os engates Camlock são essenciais para sistemas de irrigação, pulverização de produtos químicos e transferência de fertilizantes. Eles permitem conexões rápidas e seguras de mangueiras, permitindo que os agricultores troquem de equipamento rapidamente e melhorem a eficiência operacional.
Os engates Camlock, feitos de materiais de qualidade alimentar, são essenciais na indústria de alimentos e bebidas. Eles garantem a transferência higiênica de líquidos consumíveis, como sucos, laticínios e xaropes, atendendo a rigorosos padrões sanitários para evitar contaminação.
Na indústria de gás, os engates Camlock oferecem conexões seguras e eficientes para a transferência de gases como GLP e gás natural. Sua construção robusta garante uma vedação segura, minimizando o risco de vazamentos e aumentando a segurança em aplicações de manuseio de gás.
Especificações
Especificações do produto
Código do produto | LT-33A |
Tecnologia | Seamless Steel Pipe |
Propriedade Física | Resistência à tração: 485 Mpa, Resistência ao escoamento > 205 Mpa, Alongamento: 35% |
Material que podemos fazer | Stainless steel 304/316/CF8/CF8M/1.4308/1.4470 |
Fio | BS21 (BSPT e BSPP), ANSI/ASME B1.20.1 (NPT), DIN2999(R/RP), JIS B O203/2(PT), KS BO221/2(PT), etc. |
Temperatura (Estado Estático) | -76°F to +572°F(-60℃ to +300°C) |
Superfície | Burnishing |
Modelo | P-063 |
Forma | Igual |
Logística e Certificações
Certificado | ISO 9001:2015,IS014001:2015, CE, ROHS, KC, etc. |
Pacote | Saco de PVC para cada peça. Caixas com palete/palete externo/caixas de madeira |
Porta | Ningbo/Xangai, China ou outro porto mediante solicitação. |
Amostra | Ofereça amostras grátis e frete a cobrar |
Detalhes da entrega | De acordo com as quantidades e especificações de cada pedido. Um estoque completo para fornecer entregas rápidas para pedidos pequenos. Os prazos normais de entrega são de 30 a 45 dias após o recebimento do depósito. |
Aplicações genéricas | Petróleo e Gás, Química, Alimentos e Bebidas, Irrigação Agrícola |
Apoiar


The installation process for the Weld Hose Nipple is primarily performed by welding. First, confirm the hose connector size and the compatible pipe size. The weld end of the connector must precisely align with the welding surface of the pipe or equipment. Next, use professional welding tools to secure the weld end of the Weld Hose Nipple to the pipe or equipment, ensuring the weld quality meets the required standards to avoid leaks or loosening caused by a weak weld. After welding, check the weld joint for tightness and stability to ensure there are no leaks. After the weld joint is installed, perform a system pressure test to ensure the safety of the piping system during operation.
Na SSABP, temos orgulho em fornecer engates Camlock de alta qualidade. Para garantir o desempenho e a durabilidade ideais dos nossos produtos, oferecemos serviços completos de manutenção pós-venda. Nossa equipe está pronta para ajudar com qualquer dúvida técnica, fornecer dicas de manutenção ou oferecer consultoria para solução de problemas. Também fornecemos peças de reposição e opções de manutenção para ajudar a manter a durabilidade dos seus produtos Camlock. Sua satisfação é o nosso compromisso, e nossa equipe de suporte está sempre à disposição para manter suas operações funcionando sem problemas por muito tempo após a compra.
Perguntas frequentes
Looking for answers about Weld Hose Nipple? Visit our FAQ section for detailed information and expert insights.
How can I tell if a welded hose nipple is securely installed?
After installation, you can perform a pressure test to check for leaks and ensure the welded joint is secure and reliable.
Can it be used in high-pressure systems?
Yes, the Weld Hose Nipple can withstand high pressures and is particularly suitable for transporting high-pressure liquids and gases. It provides stable performance and excellent operation in high-pressure systems.
What industries are Weld Hose Nipple suitable for?
It is widely used in industries such as metallurgy, natural gas, petrochemicals, food and pharmaceuticals, and shipping, and is particularly suitable for transporting high-temperature and high-pressure fluids.
What are the differences between welded and threaded connections?
Welded connections offer greater stability and strength than threaded connections and are suitable for high-temperature and high-pressure environments, while threaded connections are more suitable for low-pressure and low-temperature piping systems.
What tools are needed to install a welded hose nipple?
During installation, you’ll need welding tools, welding materials, and some basic measuring tools to ensure a precise and leak-proof weld.
