PVC Plug

PVC

Materiale

1/2"-4"

Størrelse

BS21/NPT/DIN

Tråd

Rørdeler

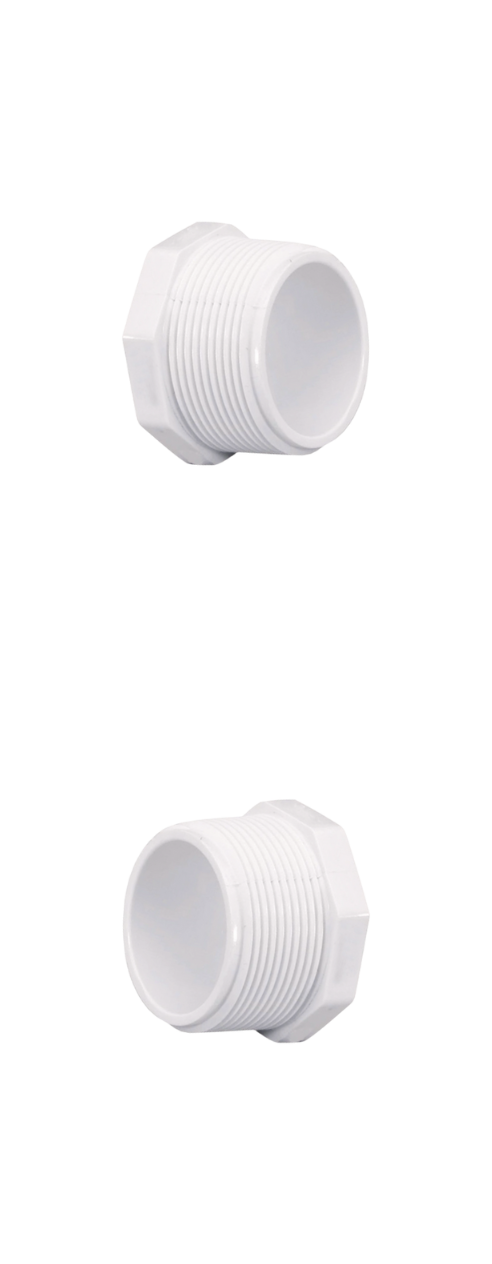

PVC plug is a pipe fitting used to close the opening of a pipe. It is usually installed at the end of the pipe or at a spare interface. It has good sealing and durability and is a common plugging component in the pipeline system.

PVC Plug

PVC plug is a pipe fitting used to close the pipe port or spare interface, usually installed at the opening of the pipe to prevent the medium in the pipe from flowing out or foreign impurities from entering the pipe system. It is usually made of PVC, has excellent corrosion resistance, sealing and durability, and is widely used in various types of pipe systems.

PVC plugs can resist corrosion from common chemicals such as acids, alkalis, and salts, so it is suitable for various industrial and civil pipelines. Coupled with its excellent sealing performance, it is widely used in drainage systems, electrical line protection, industrial pipeline systems, and chemical pipeline systems. Whether in the civil field or the industrial field, it can provide safe and reliable sealing, is an indispensable and important component in the pipeline system, and is also known as the ideal choice for various industries.

Funksjoner

High Mechanical Strength

PVC plug has good pressure resistance and impact resistance, is not easy to break, can withstand certain pressures and loads, and ensures the stability of the pipeline system.

Various Sizes Available

PVC plugs come in a variety of sizes, ranging from 1/2" to 4", and can be used in a variety of pipe systems with different diameters.

High-Cost Performance

Compared with metal plugs, PVC plugs are cheaper and have lower maintenance costs. They are durable and widely used in various pipeline systems, with good cost performance.

Utmerket tetningsytelse

PVC plug is specially designed for sealing the end or branch of the pipeline, ensuring seamless and leak-free, which can effectively prevent external impurities or pollutants from entering the pipeline system and the internal medium from flowing out.

Bruksområder

Drivstoff og olje

Camlock-koblinger er uunnværlige i drivstoff- og oljeindustrien, og gir pålitelige og lekkasjesikre koblinger for overføring av petroleumsprodukter. Deres hurtigkoblings-/frakoblingsfunksjon forbedrer sikkerheten og effektiviteten under laste- og losseprosesser.

Jordbruk

I landbruket er camlock-koblinger avgjørende for vanningssystemer, kjemisk sprøyting og overføring av gjødsel. De muliggjør raske og sikre slangekoblinger, slik at bønder kan bytte utstyr raskt og forbedre driftseffektiviteten.

Mat og drikke

Camlock-koblinger laget av næringsmiddelgodkjente materialer er avgjørende i næringsmiddel- og drikkevareindustrien. De sikrer hygienisk overføring av forbruksvæsker som juice, meieriprodukter og sirup, og overholder strenge hygieniske standarder for å forhindre kontaminering.

Gass

I gassindustrien gir camlock-koblinger sikre og effektive koblinger for overføring av gasser som LPG og naturgass. Den robuste konstruksjonen sikrer en sikker tetning, noe som minimerer risikoen for lekkasjer og forbedrer sikkerheten i gasshåndteringsapplikasjoner.

Spesifikasjoner

Produktspesifikasjoner

Produktkode	LT-43A
Teknologi	Injection Molding
Fysisk eiendom	Tensile strength: ≥45 MPa, good impact resistance
Materiale vi kan lage	PVC
Tråd	BS21 (BSPT og BSPP), ANSI/ASME B1.20.1 (NPT), DIN2999 (R/RP), JIS B O203/2 (PT), KS BO221/2 (PT), osv.
Temperatur (statisk tilstand)	Conventional PVC: -15°C（5°F）to 60°C（140°F）
Flate	Polishing/Sandblasting/UV-Resistant Coating
Modell	P-081
Form	Lik

Logistikk og sertifiseringer

Sertifikat	ISO 9001:2015, IS014001:2015, CE, ROHS, KC, osv.
Pakke	PVC-pose for hvert stykke. Kartonger med pall/ut pall/trekasser
Havn	Ningbo/Shanghai, Kina eller annen havn på forespørsel.
Prøve	Tilbyr gratis vareprøver og frakt innkrevd
Leveringsdetaljer	I henhold til mengder og spesifikasjoner for hver bestilling. Komplett lager for å gi rask levering for små bestillinger. Normal leveringstid er fra 30 til 45 dager etter mottatt depositum.
Generiske applikasjoner	Olje og gass, kjemikalier, mat og drikke, landbruksvanning

Støtte

Mer om oss

Installasjonsveiledning

The installation methods of PVC plugs are usually threaded connection and glue bonding. When using a threaded connection, the PVC plug needs to be screwed into the inner thread interface of the pipe in the specified direction and tightened. Do not use excessive force to damage the thread. If it is glue bonding, PVC glue needs to be applied to the surface of the PVC plug and the inner wall of the connected pipe, and then quickly inserted into the pipe and connected tightly. After completing the connection, please do not forget to check the sealing of the connection.

Vedlikehold etter salg

Hos SSABP er vi stolte av å levere camlock-koblinger av høy kvalitet. For å sikre at du får optimal ytelse og levetid fra produktene våre, tilbyr vi omfattende vedlikeholdstjenester etter salg. Teamet vårt er klare til å hjelpe med eventuelle tekniske spørsmål, gi vedlikeholdstips eller råd om feilsøking. Vi leverer også reservedeler og servicealternativer for å opprettholde holdbarheten til camlock-produktene dine. Din tilfredshet er vår forpliktelse, og supportteamet vårt er alltid her for å holde driften din i gang knirkefritt lenge etter kjøpet.

Vanlige spørsmål

Looking for answers about PVC Plug? Visit our FAQ section for detailed information and expert insights.

Can PVC plugs be used for gas pipelines?

We do not recommend using it for gas pipelines, it is mainly suitable for liquid delivery pipeline systems.

How much pressure can a PVC plug withstand?

PVC plugs of different specifications have different pressure-bearing capacities, which are basically between 150-450PSI. You can choose different PVC plugs according to the pressure conditions of your system.

Can the PVC plug be reused?

If it is connected by thread, it can be reused. But if it is bonded by glue, it cannot be reused, which will affect the sealing of the pipeline system.

Can PVC plugs be used in drinking water pipe systems?

Yes, PVC plugs are environmentally friendly and do not contain harmful substances. They can be used in drinking water pipes.

Do you need special tools for PVC plug installation?

Usually, no special tools are needed for threaded installation, but you can use a wrench to tighten the seal of the connection. For glue bonding, you need to use PVC glue, and no additional tools are needed.
