Acero inoxidable

Material

1/8"-4"

Talla

BSPT/BSPP/NPT

Hilo

Accesorios de tubería

90°Street Elbow F-M

The 90° Street Elbow F-M is a high-performance pipe fitting crafted from durable stainless steel, ideal for various applications including high-pressure and corrosive systems.

90°Street Elbow F-M

The 90° Street Elbow F-M is designed for efficient fluid delivery in various demanding environments. Manufactured using Silica Sol Precision Casting Technology, this fitting offers exceptional tensile and yield strength, making it perfect for high-pressure and corrosive applications. It features a corrosion-resistant finish and can withstand extreme temperatures from -76°F to +572°F (-60°C to +300°C). This versatile elbow fitting is invaluable in industries such as oil and gas, agriculture, and food processing, ensuring reliable performance and safety.

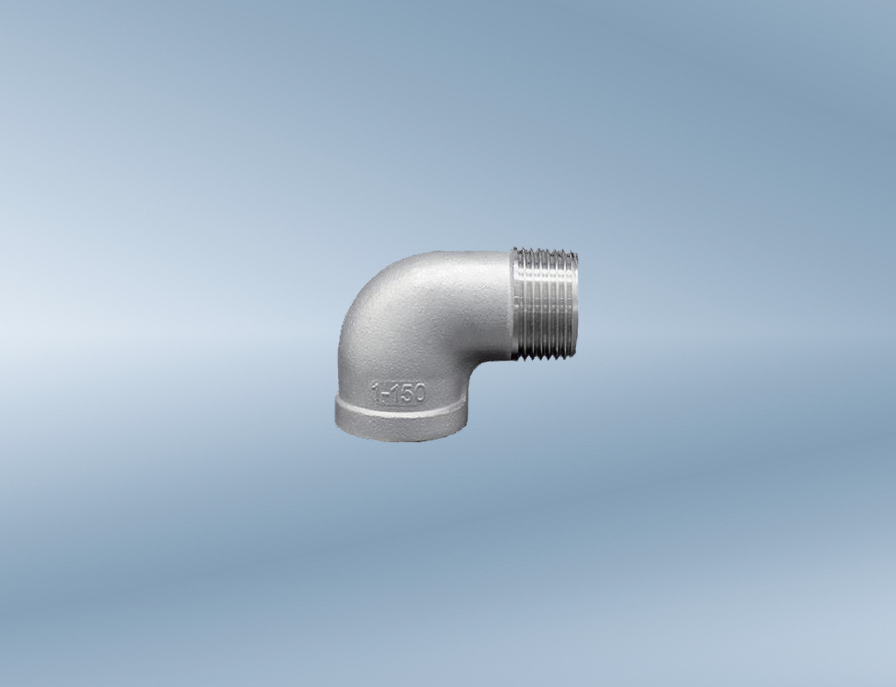

LT-10B_centered

Características

High Strength

With a tensile strength of 485Mpa, this elbow can handle demanding applications while maintaining integrity under pressure.

Corrosion Resistant

Constructed from stainless steel 304/316, the elbow is designed to resist corrosion, extending its lifespan in harsh environments.

Easy Installation

Designed for straightforward installation, this elbow fitting integrates seamlessly into existing systems, reducing downtime.

Wide Temperature Range

Able to operate in temperatures from -76°F to +572°F, this fitting is suitable for a variety of fluid delivery systems.

LT-10B_flipped

Aplicaciones

Combustible y aceite

Los acoplamientos Camlock son indispensables en la industria petrolera y de combustibles, ya que proporcionan conexiones fiables y herméticas para la transferencia de productos petrolíferos. Su rápida conexión y desconexión mejora la seguridad y la eficiencia durante los procesos de carga y descarga.

Agricultura

En la agricultura, los acoplamientos de leva son esenciales para los sistemas de riego, la pulverización de productos químicos y la transferencia de fertilizantes. Permiten conexiones de mangueras rápidas y seguras, lo que permite a los agricultores cambiar de equipo con rapidez y mejorar la eficiencia operativa.

Alimentos y bebidas

Los acoplamientos Camlock fabricados con materiales de grado alimenticio son vitales en la industria de alimentos y bebidas. Garantizan la transferencia higiénica de líquidos consumibles como jugos, productos lácteos y jarabes, cumpliendo estrictas normas sanitarias para prevenir la contaminación.


Gas

En la industria del gas, los acoplamientos Camlock proporcionan conexiones seguras y eficientes para la transferencia de gases como GLP y gas natural. Su robusta construcción garantiza un sellado seguro, minimizando el riesgo de fugas y mejorando la seguridad en las aplicaciones de manipulación de gas.

Especificaciones

Especificaciones del producto
Código de productoLT-10B
TecnologíaTecnología de fundición de precisión con sol de sílice
Propiedad físicaResistencia a la tracción: 485 MPa, Límite elástico > 205 MPa, Alargamiento: 351 TP3T
Material que podemos hacerStainless steel 304/316/CF8/CF8M/1.4308/1.4450
HiloBS21 (BSPT y BSPP), ANSI/ASME B1.20.1 (NPT), DIN2999 (R/RP), JIS B O203/2 (PT), KS BO221/2 (PT), etc.
Temperatura (estado estático)-76°F to +572°F(-60℃ to +300°C)
SuperficieEncurtido y pelado
ModeloP-043
FormaIgual
Logística y Certificaciones
CertificadoISO 9001:2015,IS014001:2015, CE, ROHS, KC, etc..
PaqueteBolsa de PVC para cada pieza. Cajas de cartón con palet/fuera de palet/cajas de madera
PuertoNingbo/Shanghai, China u otro puerto a pedido.
MuestraOfrecemos muestras gratuitas y flete recogido
Detalle de entregaSegún las cantidades y especificaciones de cada pedido. Un stock completo para brindar entregas rápidas para pedidos pequeños. Los tiempos de entrega normales son de 30 a 45 días después de recibir el depósito.
Aplicaciones genéricasPetróleo y gas, química, alimentos y bebidas, riego agrícola
Guía de instalación

To install the 90° Street Elbow F-M, first ensure all surfaces are clean and free of debris. Align the elbow fitting with the connected pipes, ensuring the correct thread type is utilized. Apply appropriate thread sealant to prevent leaks and screw tightly using a wrench, taking care not to overtighten and damage the fitting. Verify alignment and secure the adjacent pipes. After installation, check for leaks under operating pressure before use.

Mantenimiento posventa

En SSABP, nos enorgullece ofrecer acoplamientos Camlock de alta calidad. Para garantizar un rendimiento óptimo y una larga vida útil de nuestros productos, ofrecemos un servicio integral de mantenimiento posventa. Nuestro equipo está listo para ayudarle con cualquier consulta técnica, brindarle consejos de mantenimiento o brindarle asesoramiento para la resolución de problemas. También suministramos piezas de repuesto y opciones de servicio para ayudar a mantener la durabilidad de sus productos Camlock. Su satisfacción es nuestro compromiso, y nuestro equipo de soporte está siempre disponible para garantizar el correcto funcionamiento de sus operaciones mucho después de su compra.

Preguntas frecuentes

Looking for answers about 90°Street Elbow F-M? Visit our FAQ section for detailed information and expert insights.

What materials are available?

The 90° Street Elbow F-M is available in stainless steel 304 and 316, which provide excellent corrosion resistance and durability for various applications.

This elbow fitting can operate in temperatures ranging from -76°F to +572°F (-60°C to +300°C), making it suitable for high-temperature fluid systems.

The product is certified with ISO 9001:2015, ISO 14001:2015, CE, ROHS, and KC, ensuring it meets international quality and safety standards.

Yes, we offer free samples of the 90° Street Elbow F-M, with freight collected. This allows you to assess the quality before making an order.

This elbow fitting is widely used in high-pressure fluid delivery systems, corrosive medium delivery, fire protection, and hydraulic systems in various industries.
