Edelstahl
Material
1/8"-4"
Größe
BS21/NPT/DIN
Thread
Rohrverschraubungen

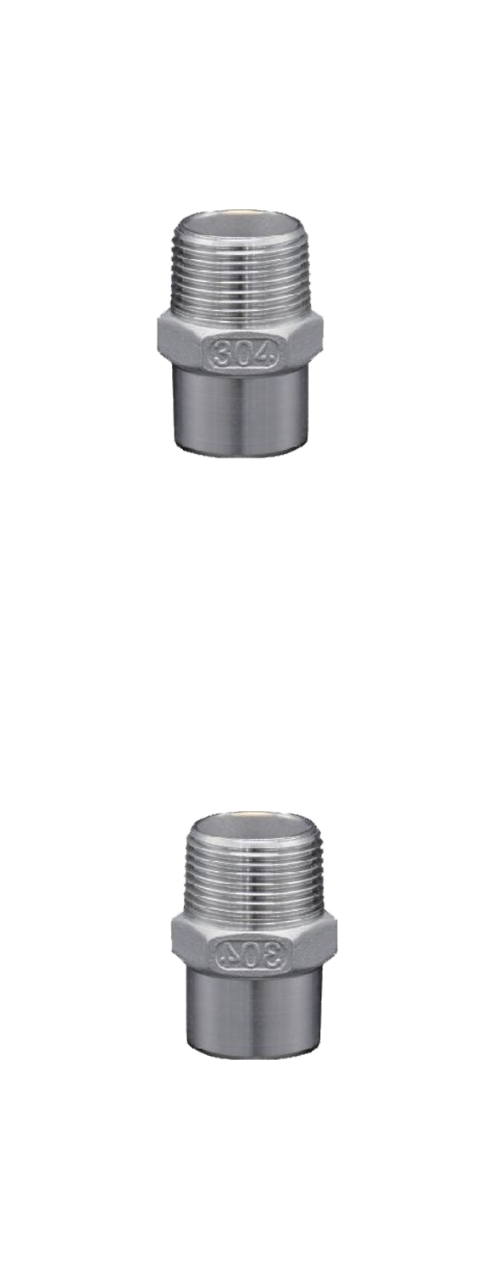

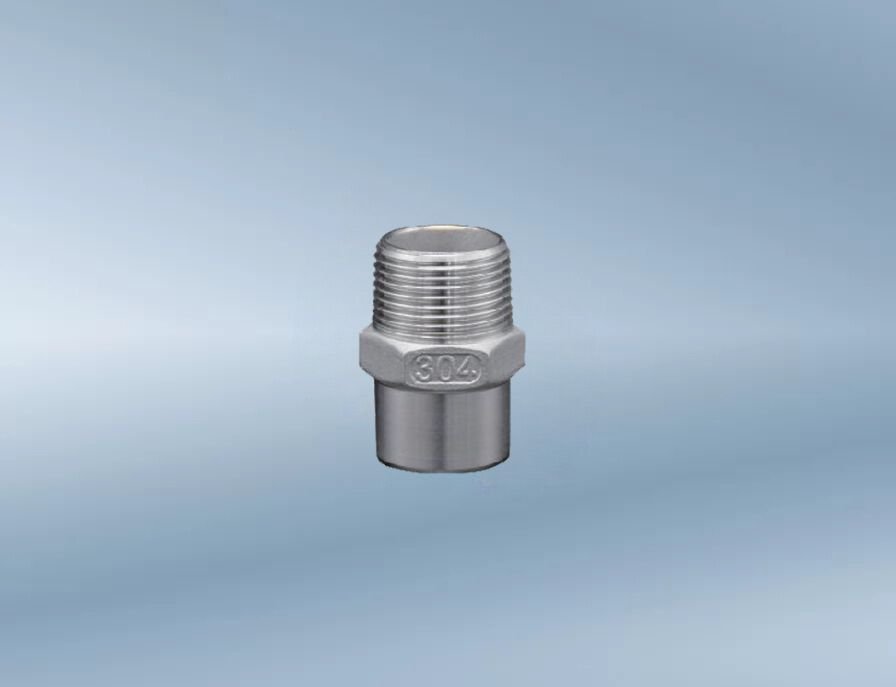

Welding-Hex Nipple BW-M
The Welding-Hex Nipple BW-M is a hexagonal welding nipple that uses a welded connection method. It has a hexagonal design and is easy to install and remove. It is suitable for various high-pressure and high-temperature working environments.
- Excellent Pressure Resistance
- Long-Term Stable Operation
- Prevents Leakage
- OEM Custom
- Fast And Safe Logistics
Welding-Hex Nipple BW-M
The BW-M Welding-Hex Nipple is a fitting commonly used for pipe connections. Its hexagonal shape makes it easy to install and remove. BW-M stands for Butt-Weld Male, meaning one end has a male threaded connector and the other is weldable. This fitting is welded to the pipe. The welded end ensures a strong, secure connection between the fitting and the pipe, providing a more stable and durable connection.
The BW-M Welding-Hex Nipple is used in industries including petrochemicals, natural gas, hydraulic systems, metallurgy, and shipbuilding. In these industries, it is often used for high-pressure transmission of liquids, gases, or steam, particularly in systems requiring resistance to high temperatures, corrosion, and high pressures. Due to its stable connection, it plays a vital role in oil and gas pipelines, ensuring long-term, reliable operation.
Features
Excellent Pressure Resistance
Due to the unique design of the welded joint, the Welding-Hex Nipple BW-M offers superior pressure resistance, making it suitable for use in demanding operating conditions, particularly in hydraulic systems.
Good Corrosion Resistance
This product is typically made of highly corrosion-resistant materials such as stainless steel, ensuring stable operation in harsh environments and offering excellent resistance to acids, alkalis, and chemicals.
Long-term Stable Operation
The welded joint design ensures the Welding-Hex Nipple BW-M maintains excellent performance and stable operation even in high-pressure and high-temperature environments.
Easy Maintenance
If a joint fails, simply cut and re-weld a new joint, eliminating the need to replace the entire piping system and reducing maintenance costs.
Anwendungen
Camlock couplings are indispensable in the fuel and oil industry, providing reliable and leak-proof connections for transferring petroleum products. Their quick connect/disconnect capability enhances safety and efficiency during loading and unloading processes.
In agriculture, camlock couplings are essential for irrigation systems, chemical spraying, and transferring fertilizers. They enable quick and secure hose connections, allowing farmers to change equipment swiftly and improve operational efficiency.
Camlock couplings made from food-grade materials are vital in the food and beverage industry. They ensure the hygienic transfer of consumable liquids like juices, dairy products, and syrups, adhering to strict sanitary standards to prevent contamination.
In the gas industry, camlock couplings provide safe and efficient connections for transferring gases such as LPG and natural gas. Their robust construction ensures a secure seal, minimizing the risk of leaks and enhancing safety in gas handling applications.
Specs
Product Specifications
| Product Code | LT-04C |
| Technology | Silica Sol Precision Casting Technology |
| Physical Property | Tensile strength: 485Mpa, Yield strength > 205Mpa, Elongation: 35% |
| Material We Can Do | Stainless steel 304/316/CF8/CF8M/1.4308/1.4430 |
| Thread | BS21 (BSPT&BSPP), ANSI/ASME B1.20.1 (NPT), DIN2999(R/RP), JIS B O203/2(PT), KS BO221/2(PT), etc. |
| Temperature (Static State) | -76°F to +572°F（-60℃ to +300°C） |
| Surface | Pickling and Peeling |
| Model | P-023 |
| Shape | Equal |
Logistics and Certifications
| Certificate | ISO 9001:2015,IS014001:2015, CE, ROHS, KC, etc.. |
| Package | PVC bag for each piece.Cartons with pallet/out pallet/wooden boxes |
| Port | Ningbo/Shanghai, China Or other port on request. |
| Sample | Offer free samples and freight collected |
| Delivery Detail | According to the quantities and specifications of each orderA complete stock to provide fast deliveries for small orders.Normal delivery times is from 30 to 45 days after receiving the deposit |
| Generic Applications | Oil and Gas, Chemical, Food and Beverage, Agricultural Irrigation |
Support
Before installation, clean the joint welding surfaces to remove impurities such as oil, rust, and grease. First, ensure that the welding port matches the port size of the pipe or equipment. Next, weld the joint to the corresponding position on the pipe or equipment, ensuring that the welding process meets standards. After welding, inspect the weld to ensure its strength and tightness. Finally, perform a pressure test to ensure that the joint is leak-free and secure.
At SSABP, we're proud to deliver high-quality camlock couplings. To ensure you get optimal performance and longevity from our products, we offer comprehensive after-sales maintenance services. Our team is ready to assist with any technical queries, provide maintenance tips, or offer troubleshooting advice. We also supply replacement parts and servicing options to help maintain the durability of your camlock products. Your satisfaction is our commitment, and our support team is always here to keep your operations running smoothly long after your purchase.
FAQs
Looking for answers about Welding-Hex Nipple BW-M? Visit our FAQ section for detailed information and expert insights.
What industries are the BW-M Hex Welding Nipple suitable for?
Our BW-M Hex Welding Nipple is suitable for industries such as petrochemicals, natural gas, metallurgy, shipbuilding, and hydraulic systems.
What is the operating temperature range for this product?
Our products maintain stable performance across a wide temperature range of -76°F to +572°F (-60°C to +300°C) without hindering system operation.
Is it suitable for high-temperature, high-pressure environments?
Yes. The Welding-Hex Nipple BW-M is suitable for high-pressure, high-temperature, and highly corrosive environments, making it particularly well-suited for use in hydraulic and gas delivery systems.
What certifications does this product have?
The Welding-Hex Nipple BW-M is certified with ISO 9001:2015, ISO 14001:2015, CE, ROHS, and KC, ensuring it meets international quality and safety standards.
Are samples available for this product?
Yes, we offer free samples of the Welding-Hex Nipple BW-M, with freight charges collected. This allows you to evaluate the quality before placing a larger order.
