Edelstahl
Material
1/4"-4"
Größe
BS21/NPT/DIN
Thread
Rohrverschraubungen

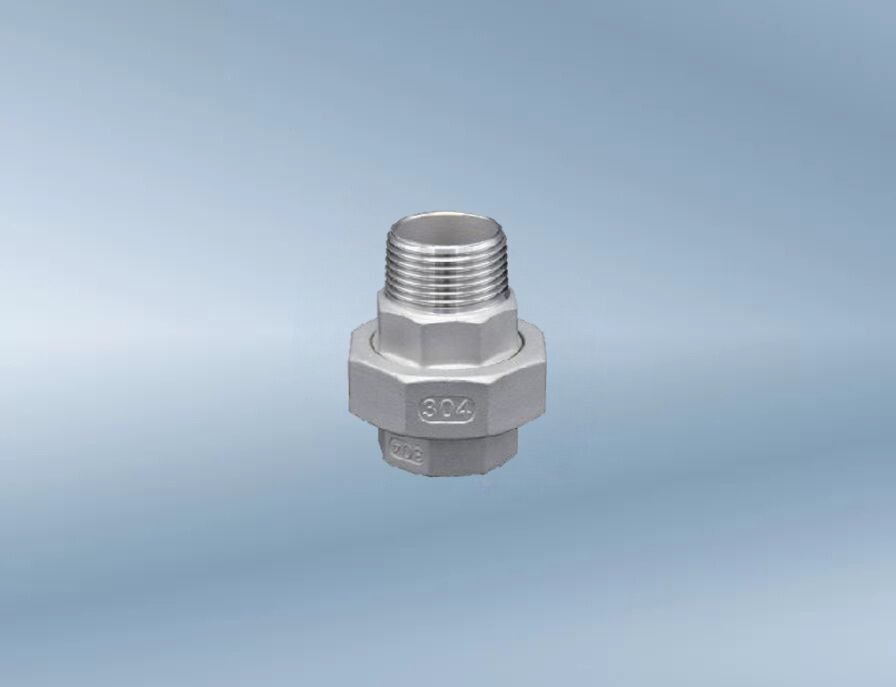

Union F-M
Union F-M is a union with internal and external threads. The combination of internal and external threads allows for greater flexibility and adaptability when connecting different types of pipes or equipment.
- Highly Durable
- Affordable
- High Sealing Performance
- OEM Custom
- Fast And Safe Logistics
Union F-M
Union F-M is a pipe connector with one end internally threaded and the other externally threaded. This design allows for greater flexibility in connecting different types of pipes or equipment. It is particularly suitable for systems that require the connection of two different thread standards, such as the transition between external and internal threads, or for connecting to equipment and pipes of different sizes.
The central Union joint structure eliminates the need to rotate the entire pipe during installation, allowing for quick connection and disassembly. It is very convenient and widely used in situations requiring frequent maintenance or equipment replacement. This connector has excellent sealing, high-pressure resistance, and corrosion resistance, making it suitable for use in petrochemical, hydraulic, natural gas, and other fields, and can meet the requirements of high temperature, high pressure, and a variety of corrosive media.
Features
Strong Durability
Thanks to its high-quality materials and precision manufacturing, the Union F-M is highly durable, maintaining long-term stable performance even in high-pressure, high-temperature, or harsh operating environments.
Wide Applications
Union F-M is widely used in the petrochemical industry, hydraulic systems, water treatment, HVAC, natural gas, and other fields, particularly in fluid transport systems that require long-term stable operation.
Easy Installation
Union F-M installation requires no welding or high-temperature handling, requiring only a standard wrench. This reduces the need for specialized tools and reduces installation costs.
Economical
Compared to welded pipe fittings, the Union F-M uses a threaded connection, which not only reduces welding time but also significantly lowers installation and maintenance costs.
Anwendungen
Camlock couplings are indispensable in the fuel and oil industry, providing reliable and leak-proof connections for transferring petroleum products. Their quick connect/disconnect capability enhances safety and efficiency during loading and unloading processes.
In agriculture, camlock couplings are essential for irrigation systems, chemical spraying, and transferring fertilizers. They enable quick and secure hose connections, allowing farmers to change equipment swiftly and improve operational efficiency.
Camlock couplings made from food-grade materials are vital in the food and beverage industry. They ensure the hygienic transfer of consumable liquids like juices, dairy products, and syrups, adhering to strict sanitary standards to prevent contamination.
In the gas industry, camlock couplings provide safe and efficient connections for transferring gases such as LPG and natural gas. Their robust construction ensures a secure seal, minimizing the risk of leaks and enhancing safety in gas handling applications.
Specs
Product Specifications
| Product Code | LT-05B |
| Technology | Silica Sol Precision Casting Technology |
| Physical Property | Tensile strength: 485Mpa, Yield strength > 205Mpa, Elongation: 35% |
| Material We Can Do | Stainless steel 304/316/CF8/CF8M/1.4308/1.4432 |
| Thread | BS21 (BSPT&BSPP), ANSI/ASME B1.20.1 (NPT), DIN2999(R/RP), JIS B O203/2(PT), KS BO221/2(PT), etc. |
| Temperature (Static State) | -76°F to +572°F（-60℃ to +300°C） |
| Surface | Pickling and Peeling |
| Model | P-025 |
| Shape | Equal |
Logistics and Certifications
| Certificate | ISO 9001:2015,IS014001:2015, CE, ROHS, KC, etc.. |
| Package | PVC bag for each piece.Cartons with pallet/out pallet/wooden boxes |
| Port | Ningbo/Shanghai, China Or other port on request. |
| Sample | Offer free samples and freight collected |
| Delivery Detail | According to the quantities and specifications of each orderA complete stock to provide fast deliveries for small orders.Normal delivery times is from 30 to 45 days after receiving the deposit |
| Generic Applications | Oil and Gas, Chemical, Food and Beverage, Agricultural Irrigation |
Support
First, ensure that the pipe ends match the male and female threads of the Union F-M. During installation, apply a moderate amount of sealant or wrap sealing tape (such as PTFE tape) on both the female and male ends to enhance the seal. Then, insert the male end into the female end, ensuring accurate alignment. Finally, gently tighten with a wrench to ensure a secure seal. The union design allows for easy removal and replacement after installation. If disassembly is necessary, simply loosen the union to quickly replace or adjust the piping system.
At SSABP, we're proud to deliver high-quality camlock couplings. To ensure you get optimal performance and longevity from our products, we offer comprehensive after-sales maintenance services. Our team is ready to assist with any technical queries, provide maintenance tips, or offer troubleshooting advice. We also supply replacement parts and servicing options to help maintain the durability of your camlock products. Your satisfaction is our commitment, and our support team is always here to keep your operations running smoothly long after your purchase.
FAQs
Looking for answers about Union F-M? Visit our FAQ section for detailed information and expert insights.
What industries are Union F-M suitable for?
Our Union F-M is widely used in industries such as petrochemicals, water treatment, natural gas, hydraulic systems, and the food and pharmaceutical industries, particularly in systems requiring high sealing and high-pressure resistance.
Can the Union F-M be disassembled and reused multiple times?
Yes. Because the Union F-M uses a flexible joint design, it can be disassembled multiple times without compromising the sealing properties of the connection, making it suitable for systems that require frequent maintenance.
Can it be used in high-temperature environments?
The Union F-M is made of high-quality stainless steel and can typically withstand operating temperatures up to 300°C, making it suitable for use in high-temperature environments.
Is sealing tape necessary?
We recommend using sealing tape or sealant on the threads to ensure a good seal and prevent leaks.
What certifications does this product have?
The Union F-M is certified with ISO 9001:2015, ISO 14001:2015, CE, ROHS, and KC, ensuring it meets international quality and safety standards.
