Edelstahl
Material
1/8"-4"
Größe
BS21/NPT/DIN2999
Thread
Rohrverschraubungen

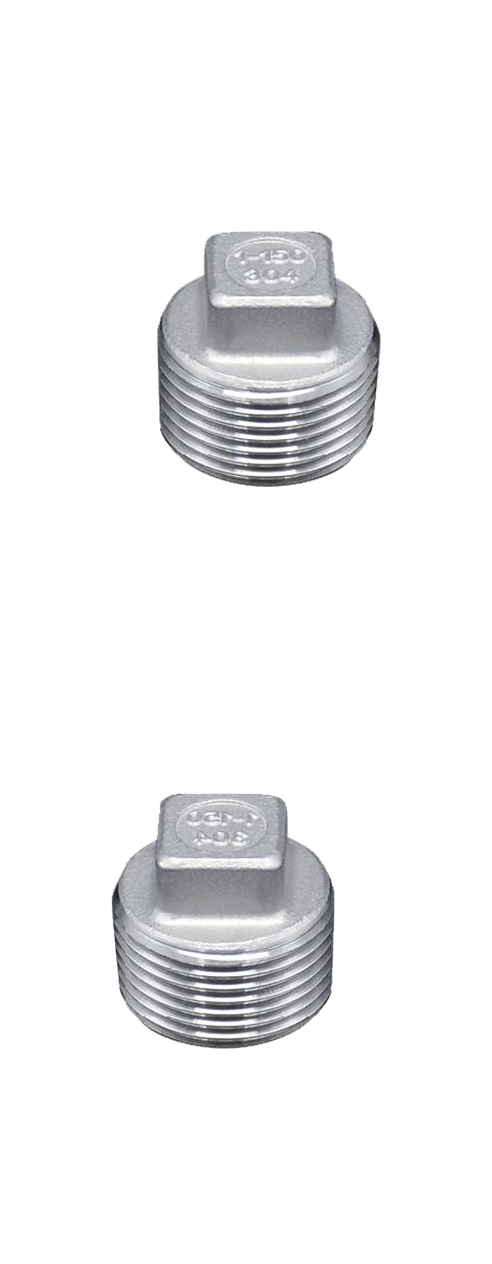

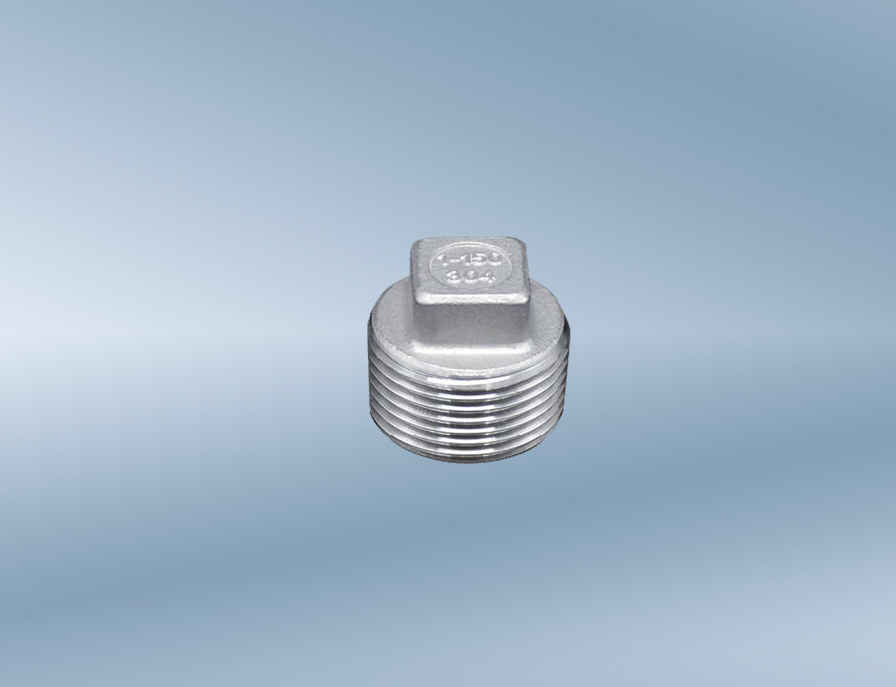

Square Plug M
The Square Plug M is a durable and versatile pipe fitting designed for high-pressure and high-temperature applications, ensuring safety and reliability.
- Corrosion Resistant
- Wide Temperature Range
- Easy to Install
- OEM Custom
- Fast And Safe Logistics
Square Plug M
Constructed using Silica Sol Precision Casting Technology, the Square Plug M is engineered for optimal performance in a variety of demanding applications. Available in stainless steel 304 and 316, this fitting offers exceptional tensile strength of 485Mpa and yield strength greater than 205Mpa, making it ideal for high-pressure and corrosive environments. With a temperature range from -76°F to +572°F and compliance with various international standards, this product guarantees both safety and reliability. Perfect for fuel, oil, agriculture, and hydraulic systems, the Square Plug M is a trusted choice for professionals.
Features
High Strength
With a tensile strength of 485Mpa and yield strength of over 205Mpa, this fitting is built to withstand extreme pressures.
Corrosion Resistant
Manufactured from high-quality stainless steel, the Square Plug M is resistant to rust and corrosion, ensuring longevity.
Temperature Versatility
Operates efficiently in temperatures ranging from -76°F to +572°F, making it suitable for a wide variety of applications.
Easy Installation
Designed for user-friendly installation, the Square Plug M simplifies maintenance and replacement in various systems.
Anwendungen
Camlock couplings are indispensable in the fuel and oil industry, providing reliable and leak-proof connections for transferring petroleum products. Their quick connect/disconnect capability enhances safety and efficiency during loading and unloading processes.
In agriculture, camlock couplings are essential for irrigation systems, chemical spraying, and transferring fertilizers. They enable quick and secure hose connections, allowing farmers to change equipment swiftly and improve operational efficiency.
Camlock couplings made from food-grade materials are vital in the food and beverage industry. They ensure the hygienic transfer of consumable liquids like juices, dairy products, and syrups, adhering to strict sanitary standards to prevent contamination.
In the gas industry, camlock couplings provide safe and efficient connections for transferring gases such as LPG and natural gas. Their robust construction ensures a secure seal, minimizing the risk of leaks and enhancing safety in gas handling applications.
Specs
Product Specifications
| Product Code | LT-06A |
| Technology | Silica Sol Precision Casting Technology |
| Physical Property | Tensile strength: 485Mpa, Yield strength > 205Mpa, Elongation: 35% |
| Material We Can Do | Stainless steel 304/316/CF8/CF8M/1.4308/1.4439 |
| Thread | BS21 (BSPT&BSPP), ANSI/ASME B1.20.1 (NPT), DIN2999(R/RP), JIS B O203/2(PT), KS BO221/2(PT), etc. |
| Temperature (Static State) | -76°F to +572°F（-60℃ to +300°C） |
| Surface | Pickling and Peeling |
| Model | P-032 |
| Shape | Equal |
Logistics and Certifications
| Certificate | ISO 9001:2015,IS014001:2015, CE, ROHS, KC, etc.. |
| Package | PVC bag for each piece.Cartons with pallet/out pallet/wooden boxes |
| Port | Ningbo/Shanghai, China Or other port on request. |
| Sample | Offer free samples and freight collected |
| Delivery Detail | According to the quantities and specifications of each orderA complete stock to provide fast deliveries for small orders.Normal delivery times is from 30 to 45 days after receiving the deposit |
| Generic Applications | Oil and Gas, Chemical, Food and Beverage, Agricultural Irrigation |
Support
To install the Square Plug M, first ensure that the pipe threads are clean and free of debris. Apply an appropriate thread sealant to prevent leaks. Carefully screw the plug into the fitting until secure, ensuring it is aligned correctly. Use a wrench to tighten it further, but avoid over-torquing, which can damage the threads. Once installed, check for leaks by applying pressure to the system before putting it into full operation.
At SSABP, we're proud to deliver high-quality camlock couplings. To ensure you get optimal performance and longevity from our products, we offer comprehensive after-sales maintenance services. Our team is ready to assist with any technical queries, provide maintenance tips, or offer troubleshooting advice. We also supply replacement parts and servicing options to help maintain the durability of your camlock products. Your satisfaction is our commitment, and our support team is always here to keep your operations running smoothly long after your purchase.
FAQs
Looking for answers about Square Plug M? Visit our FAQ section for detailed information and expert insights.
What materials are available?
The Square Plug M is available in ASTM A351 CF8 (stainless steel 304) and ASTM A351M CF8M (stainless steel 316), providing options for various applications.
What are the suitable applications?
This product is suitable for high-pressure fluid delivery systems, corrosive medium delivery systems, and high-temperature fluid delivery systems, among others.
How do I determine the right size?
The Square Plug M is available in sizes ranging from 1/8″ to 4″. Choose based on the pipe dimensions and the specific requirements of your application.
Is there a warranty on this product?
Yes, the Square Plug M comes with a warranty that covers manufacturing defects. For specific terms, please refer to the product documentation or contact support.
Can I get a sample before purchase?
Absolutely! We offer free samples of the Square Plug M; however, freight costs will be collected. This allows you to assess the quality before making a larger commitment.
