Y-type tees and Y-type strainers are both common Y-type pipe fittings in pipe systems, and they play an important role in pipe systems. Due to their appearance, many people may confuse them. In fact, they have obvious differences in functions and application areas.

In this article, you will learn about their respective functions, applications and other information in detail, helping you choose the right product in the right system.

Overview of Y-Type Tee

Y-type tee is mainly used to realize the diversion and convergence of fluid in the pipe system, diverting the fluid in one pipe to two other pipes in different directions, or converging the fluid in two pipes into another pipe in different directions.

Struktur

Y-type tee is a “Y”-shaped pipe fitting with three interfaces. Usually, the angle between the branch interfaces is 45°, and sometimes there are other angles according to different needs.

Function

The function of the Y-type tee is mainly used for fluid diversion and confluence in the pipe system, changing the transmission direction of the fluid, and does not have other special functions.

Application Areas

• Agricultural Irrigation: Y-type tees can control the flow direction of fluids in the irrigation system, adjust the distribution of water sources, and meet irrigation needs.

• Petrochemical: When transporting related chemicals or petroleum products, the application of Y-type tees can effectively control and divert.

• HVAC: Y-type tees can achieve the effect of controlling the indoor environment to maintain a comfortable range by adjusting the air, water and other media inside the HVAC system.

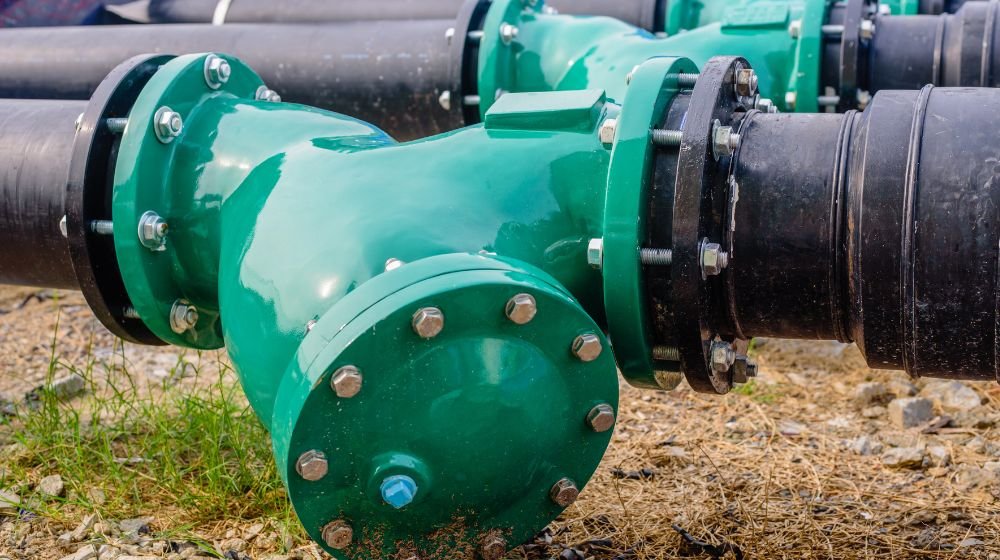

Overview of Y-Type Strainer

Y-type strainer is mainly used to remove impurities from fluid in the pipe system to protect other parts and equipment in the pipe from damage, such as valves.

Struktur

A Y-type strainer is also a “Y”-shaped pipe fitting with three interfaces, and the angle of the branch interface is usually 45°. There is a strainer inside one of the branches, which is different from the Y-type tee. This strainer is detachable, which is convenient for replacement and cleaning.

Function

When the Y-type strainer is running in the pipe system, it can filter out solid impurities such as sand, iron filings and other particles from the pipe to ensure the stability of fluid transmission in the pipe system and the purity of the fluid medium. At the same time, through filtering, it can also ensure the safety of other equipment in the pipe system, protect them from damage by these solid particles and impurities, and ensure transmission efficiency.

Application Areas

• Water Supply System: It is very necessary to install a Y-type strainer in the water supply system. It can filter impurities in the water, improve water quality, and ensure the stability of the water supply system.

• Industrial Field: In industrial fields such as petroleum and electricity, the Y-type strainer can filter impurities and particulate matter in the fluid. It can not only ensure the purity of the medium, but also protect pumps, valves and other equipment from damage.

• Pharmaceutical Industry: When transporting fixed drugs, the impurities in the drugs can be filtered with the help of the Y-type strainer to ensure the quality and safety of the drugs.

Comparative Analysis of Y-Type Tee and Y-Type Strainer

Function

Y-type Tee is mainly used to simply divert and merge the fluid in the pipe system, while the Y-type strainer can filter out solid impurities and solid particles in the pipe, ensuring the purity of the fluid while also ensuring the safety of downstream equipment.

Struktur

The Y-type tee has a simple structure and no special devices. There is also a strainer inside the branch of the Y-type strainer to filter impurities.

Kosten

The cost of a Y-type tee is relatively low and usually does not require maintenance. The cost of a Y-type strainer is higher and requires regular inspection and maintenance, which is a necessary expense. However, overall, the Y-type strainer can play a certain protective role in the system, and it still has a certain cost-effectiveness.

Y-Type Tee and Y-Type Strainer: How to Choose?

So how to choose between the two? You need to make a choice based on the needs of your pipe system.

If you just need to make necessary diversion and confluence of fluids in the pipe system, then you can directly choose the Y-type tee. But if you also need a pipe fitting with a filtering function, then the Y-type strainer is indeed a good choice for you, although it is a little more expensive.

Abschluss

Through the detailed comparison between Y-type tee and Y-type strainer, I believe you have a full understanding of them. Y-type tee can effectively divide and merge in the pipe system, while Y-type strainer can not only filter impurities, but also protect the system.

When making a choice, you need to properly consider the requirements of your system. Choosing the right pipe fittings can not only improve the transmission efficiency of your system, but also effectively extend the life of the system.

The transmission systems of different industries and requirements use different tubes, some are hoses, some are pipes. The connection methods between them and pipe fittings are varied and each has its own characteristics. In this article, you will learn about the connection methods between pipes and hoses and pipe fittings, which will help you make better choices for your transmission system.

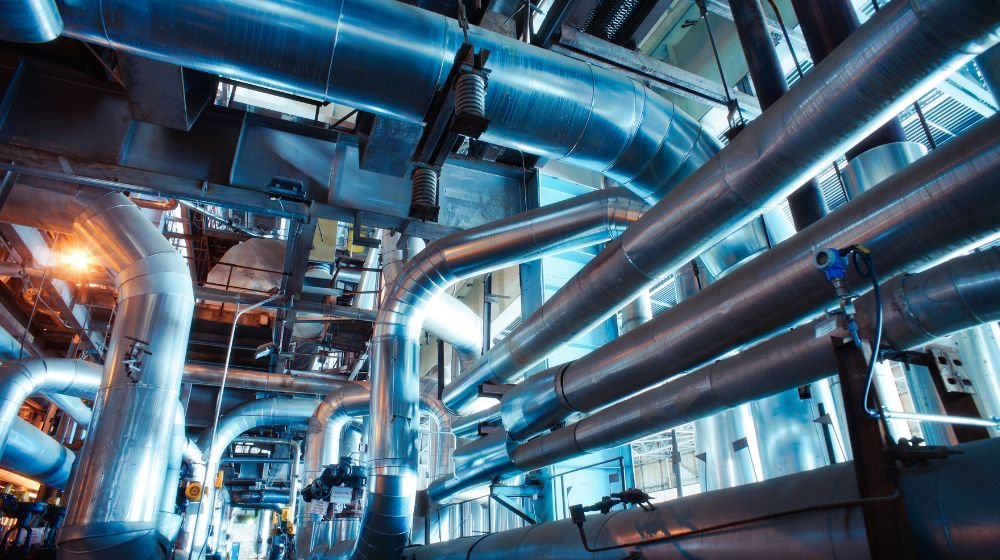

Connection Methods of Pipes and Pipe Fittings

There are several main ways to connect pipes and fittings, including glue bonding, socket connection, threaded connection and flange connection. The following is an analysis of the advantages and disadvantages of these connection methods and applicable scenarios.

Glue Bonding

Operation Method: Apply the corresponding glue on the outer surface of the pipe interface and the inner surface of the pipe fitting interface, quickly align the pipe with the pipe fitting and insert it. By rotating the two, the glue can be evenly distributed at the connection between the two, and after the glue solidifies, a firm and reliable connection is formed.

Vorteile

• Easy to Operate: Just apply the glue and rotate it to make it evenly distributed, and wait for it to solidify. It is very convenient to operate.

• Good Sealing: Once the glue solidifies and completes the connection, it will form a very tight sealing effect.

• Low Cost: In addition to pipes and pipe fittings, you only need to prepare glue, and no additional cost is required.

Nachteile

• Limited Temperature Range: The connection formed by glue has certain requirements for the temperature of the environment. Too high a temperature may cause the glue to fail and the connection to leak.

• Cannot be Disassembled: After the glue connection, it cannot be disassembled at will and can only be cut off.

Applicable Scenarios

• Agricultural Irrigation: The connection method of pipes and fittings bonded with glue is suitable for fixed irrigation systems in agriculture.

• Household Water: In household water supply, long-term connected water supply can also use glue bonding connection method.

Socket Connection

Operation Method: insert the pipe into the socket of the pipe fitting with a rubber sealing ring, and form a tight connection through the action of the rubber sealing ring and the depth of insertion into the socket.

Vorteile

• Easy to Install: no complicated tools or chemical reagents are required, and installation is very convenient.

• Strong Adaptability: it can maintain a stable state even under certain expansion and displacement conditions.

Nachteile

• Limited by the Sealing Ring: The quality of the sealing ring will greatly affect the reliability of the connection. At the same time, the sealing ring is prone to aging and damage, and needs to be repaired and replaced regularly.

• Limited Applicable Environment: Socket connection is not suitable for use in high temperature and high-pressure environments, and is prone to leakage.

Applicable Scenarios

• Greening Water Supply: In the water supply system of gardening, the socket connection is convenient and fast.

• Municipal Drainage: Municipal drainage and sewage systems can also benefit from the socket connection.

Gewindeanschluss

Operation Method: Make threads on the pipe and pipe fittings, wrap sealing tape or apply sealant on the threads, and then connect the two together to form a tight connection with the help of threads.

Vorteile

• Strong Flexibility: Threaded connection is very flexible and can be disassembled, which is very convenient for maintenance.

• Good Sealing: Connection through threads has good sealing and is not prone to leakage.

Nachteile

• Limited System Pressure: This connection method between pipes and fittings is not suitable for use in high-pressure systems.

• Difficult Processing: In order to ensure accuracy, it is difficult to process threads on pipes and fittings.

Applicable Scenarios

• Industrial Water: It can be used for the transportation of industrial water and industrial reagents.

• Household Water: It can transport household water to ensure the stability of transportation.

Flanschanschluss

Operation Method: Install the flange at the interface of the pipe and the pipe fitting, then install the sealing gasket between the two, connect and tighten the two with bolts and nuts to form a stable connection.

Vorteile

• Removable: The flange connection can be disassembled for replacement and repair, when necessary, with the help of bolts and nuts.

• Good Sealing: The flange connection formed by bolts and nuts is very stable and can achieve good sealing.

Nachteile

• High Cost: The cost of flange connection is high, and additional expenditure on bolts and nuts is required.

• Complex Installation: Bolts and nuts are required for connection, and the installation is relatively complicated.

Applicable Scenarios

• High-Pressure System: Flange connection is suitable for application in high-pressure systems to ensure its stable transmission.

• Industrial Chemical Industry: Flange connection can also play a good role in the fields of industry and chemical industry.

Connection Methods of Hoses and Pipe Fittings

Due to material reasons, the main connection methods of hoses and pipe fittings are as follows: clamp connection, threaded connection and flange connection.

Clamp Connection

Operation Method: Put the interface of the pipe fitting together with the hose, put the clamp on the outer ring of the hose, and use bolts or tighten the clamp to make the hose and pipe fittings tightly connected.

Vorteile

• Low Cost: The cost of connecting hoses with clamps is low, and it is cost-effective in short-term and temporary installations.

• Easy Operation: This connection method is very simple to operate and easy to disassemble and replace.

Nachteile

• Limited Applicable Environment: Clamp connection is not suitable for use in high-pressure systems.

• Requires Regular Inspection: Long-term use may cause loosening, so regular inspection and maintenance are required.

Applicable Scenarios

• Agricultural Gardening: It is very suitable to use clamp connection for irrigation and temporary water supply, which is convenient and fast.

• Construction Industry: In the construction industry, clamp connection can be used for temporary and short-term water supply.

Gewindeanschluss

Operation Method: Connect the internal thread of the hose with the external thread of the pipe fitting, apply sealant, if necessary, rotate and tighten in the specified direction to complete the connection.

Vorteile

• Good Sealing: The sealing formed by the threaded connection is very good.

• Strong Adaptability: The hose and pipe fittings are threaded and can be used in a variety of environments.

Nachteile

• Complex Disassembly: Not suitable for use in environments and systems where disassembly is frequent.

• Requires Regular Maintenance: Threaded connections may become loose and require regular inspection and maintenance.

Applicable Scenarios

• Firefighting Industry: Threaded connections can be used in the connection between fire hoses and water supply pipes.

• Garden Irrigation: Hoses are often used in irrigation systems in gardens, and pipe fittings can be connected to them using threads.

Flanschanschluss

Operation Method: Fit the hose and pipe fittings, place a sealing gasket in the middle, and use bolts and nuts to connect them tightly.

Vorteile

• Stable Connection: The connection between the hose and pipe fittings under the flange device is very stable and will not be easily disconnected.

• Good Versatility: It can be stably connected in a variety of transmission systems.

Nachteile

• Large Space Occupied: Flange connection occupies a large space, and the corresponding space cost is high.

• Complex Structure: The structure of the flange is relatively complex, and installation and replacement require more time.

Applicable Scenarios

• Industrial System: Stable and reliable connection can be achieved in high temperature and high-pressure environments in industry.

• Petrochemical: It can ensure the stable transportation of media such as petrochemicals.

How to Choose the Appropriate Connection Method?

When choosing a connection method, you need to carefully consider the material type of the pipe or hose, the type of medium being transmitted, and the temperature and pressure of the transmission system. You need to choose the most appropriate connection method based on these specific information and data.

For example, in a high-temperature and high-pressure system that transmits corrosive substances, you cannot use glue to bond pipes and pipe fittings. This is because it is easy to cause the glue to fail, the connection to break, and eventually leakage.

Abschluss

It is very important to choose the right connection method for pipes or hoses and fittings. When you make the right choice, you will save a lot of costs and get a solution that can ensure the long-term stability of your system transmission.

If you have any questions about these connection methods, or you want to know more about other connection methods, please feel free to communicate with us.

When it comes to plumbing and industrial applications, selecting the right pipe fittings is crucial for ensuring efficiency, durability, and safety. Among the myriad of materials available, PVC (Polyvinyl Chloride), Copper, and Stainless Steel stand out as popular choices, each with its unique advantages and applications. In this article, we will delve into a comprehensive comparison of these three materials, helping you make an informed decision for your next project. Additionally, we’ll highlight the expertise of SSABP, a leading Camlock Coupling manufacturer, in providing high-quality pipe fittings tailored to various needs.

What is Pipe Fittings

Pipe fittings are essential components used to connect straight sections of pipe, adapt to different sizes or shapes, and control fluid flow. They play a pivotal role in plumbing systems, industrial processes, and construction projects. The choice of material for pipe fittings significantly impacts the system’s performance, longevity, and maintenance requirements.

Overview of PVC Pipe Fittings

Polyvinyl Chloride (PVC) is a widely used plastic polymer known for its versatility and cost-effectiveness. PVC pipe fittings are commonly found in residential plumbing, irrigation systems, and various industrial applications.

Characteristics:

• Lightweight: Easy to handle and install, reducing labor costs.
• Corrosion-Resistant: Unlike metal fittings, PVC does not rust or corrode, making it ideal for environments with moisture.
• Cost-Effective: Generally cheaper than metal alternatives, making it a popular choice for budget-conscious projects.
• Ease of Installation: PVC fittings can be easily joined using solvent welding or mechanical fittings.

Advantages:

• Durability: Resistant to chemicals and UV radiation, ensuring longevity in various applications.
• Low Maintenance: Minimal upkeep required compared to metal fittings.
• Versatility: Available in various shapes and sizes to accommodate different plumbing needs.

Disadvantages:

• Temperature Sensitivity: Not suitable for high-temperature applications as PVC can become brittle and deform.
• Pressure Limitations: Lower pressure ratings compared to metal fittings, restricting its use in high-pressure systems.
• Aesthetic Limitations: Less visually appealing for exposed plumbing compared to copper or stainless steel.

Common Applications:

• Residential plumbing systems
• Drainage and sewage systems
• Irrigation and agricultural systems
• Chemical processing industries

Overview of Copper Pipe Fittings

Copper has been a staple in plumbing for decades, prized for its reliability and longevity. Copper pipe fittings are favored in both residential and commercial settings for their robust performance.

Characteristics:

• High Strength: Capable of withstanding high pressure and temperature, making it suitable for demanding applications.
• Natural Antimicrobial Properties: Resists bacterial growth, enhancing water quality.
• Aesthetic Appeal: Shiny, metallic finish adds a professional look to exposed plumbing systems.

Advantages:

• Longevity: Can last over 50 years with proper maintenance.
• Temperature Resilience: Performs well in both hot and cold water systems without degrading.
• Recyclable: Environmentally friendly as copper is 100% recyclable without loss of quality.

Disadvantages:

• Cost: More expensive than PVC and some stainless steel options, potentially increasing project budgets.
• Installation Complexity: Requires specialized tools and skills for soldering and joining, increasing labor costs.
• Susceptible to Corrosion: Can corrode in environments with high acidity or in contact with certain metals, leading to leaks and system failures.

Common Applications:

• Residential and commercial water supply systems
• HVAC systems
• Refrigeration lines
• Medical gas pipelines

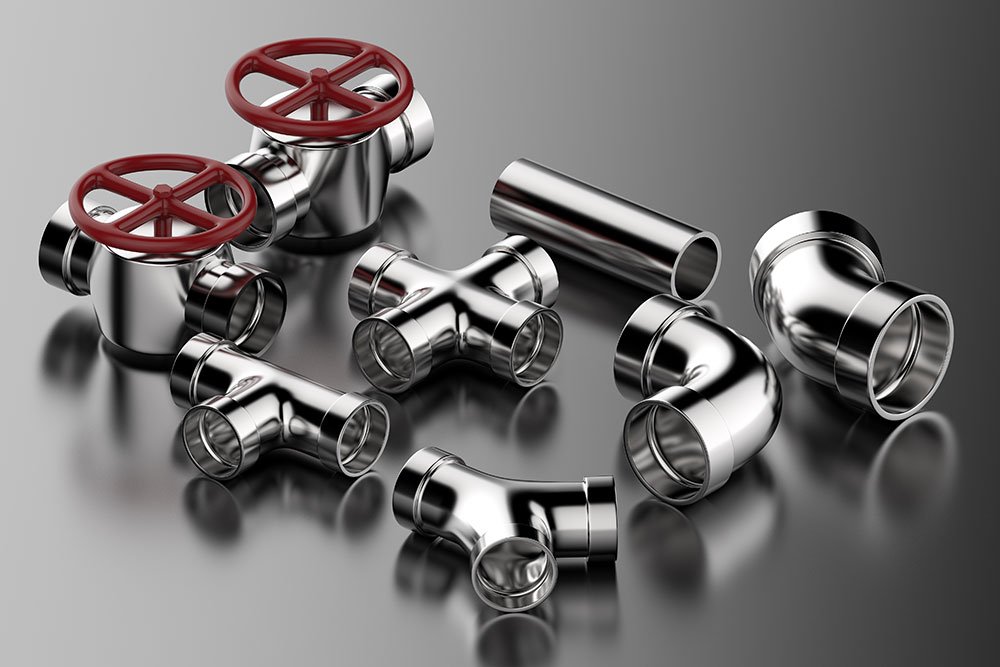

Overview of Stainless Steel Pipe Fittings

Stainless Steel pipe fittings are renowned for their strength, corrosion resistance, and ability to handle extreme conditions. They are a preferred choice in industries where reliability and performance are paramount.

Characteristics:

• Exceptional Strength: High tensile strength makes stainless steel fittings ideal for heavy-duty applications.
• Corrosion-Resistant: Resistant to rust, oxidation, and chemical corrosion, ensuring longevity even in harsh environments.
• High Temperature Tolerance: Maintains integrity under extreme temperatures, both hot and cold.

Advantages:

• Durability: Offers one of the longest lifespans among pipe fitting materials, often exceeding 50 years.
• Low Maintenance: Minimal maintenance required due to inherent corrosion resistance.
• Versatility: Suitable for a wide range of applications, from industrial processes to high-end residential systems.

Disadvantages:

• Cost: Typically the most expensive option among PVC, Copper, and Stainless Steel, which can impact overall project costs.
• Weight: Heavier than PVC, making installation more labor-intensive.
• Thermal Conductivity: Can conduct heat and cold more effectively, potentially affecting system performance if not properly insulated.

Common Applications:

• Chemical processing plants
• Food and beverage industries
• Pharmaceutical manufacturing
• High-end residential and commercial plumbing systems

Comparative Analysis

To provide a clearer picture of how PVC, Copper, and Stainless Steel pipe fittings stack up against each other, let’s examine several key factors:

Choosing the Right Material for Your Needs

Selecting the appropriate pipe fitting material depends on several factors, including the specific requirements of your project, budget constraints, and environmental conditions.

• Budget Constraints: If cost is a primary concern, PVC offers a cost-effective solution without compromising on essential performance for many applications.
• Durability and Longevity: For projects requiring long-term reliability and resistance to harsh conditions, Stainless Steel is the superior choice despite its higher initial cost.
• Ease of Installation: PVC fittings are easier and quicker to install, making them ideal for DIY projects or situations where labor costs need to be minimized.
• Temperature and Pressure Requirements: Copper and Stainless Steel fittings are better suited for systems that operate under high temperatures and pressures, ensuring safety and performance.

Abschluss

Choosing the right pipe fitting material—whether PVC, Copper, or Stainless Steel—requires careful consideration of your project’s specific needs, budget, and environmental factors. PVC stands out for its cost-effectiveness and ease of installation, making it ideal for a wide range of applications. Copper offers unmatched reliability and longevity, particularly in water supply systems, while Stainless Steel excels in demanding environments where durability and corrosion resistance are paramount.

Camlock couplings are the unsung heroes in countless industries, renowned for their dependability, simplicity, and secure connections. These connectors are essential for the smooth transfer of fluids, gases, and materials, playing a critical role in modern industrial operations. Let’s dive into how Camlock couplings revolutionize key sectors.

Landwirtschaft

Smart Irrigation Solutions

Camlock couplings streamline irrigation systems by enabling quick, leak-proof connections between hoses and pipes. This ensures water reaches crops efficiently, reducing waste and supporting sustainable farming practices.

Versatile Farm Machinery

From sprayers to tractors, Camlock couplings allow easy assembly and disassembly of hoses and pipes. This flexibility minimizes downtime and keeps farming operations running smoothly, enhancing overall productivity.

Built to Last

Designed from durable materials like stainless steel, Camlock couplings withstand harsh agricultural conditions, resisting corrosion from chemicals and extreme weather. This longevity makes them a reliable choice for outdoor farming environments.

Öl und Gas

Robust Pipeline Connections

In the oil and gas sector, Camlock couplings ensure airtight and leak-proof pipeline connections, maintaining safety and efficiency even under high pressure and temperature variations. Their cam-operated locking mechanism guarantees secure seals in dynamic environments. Adhering to American Petroleum Institute (API) standards is crucial for these applications.

Efficient Fuel Transfers

Their quick-connect feature accelerates fueling processes at refineries and storage facilities, enhancing operational productivity while resisting fuel-related corrosion. This efficiency is crucial for minimizing downtime and maximizing throughput.

Safety First

Meeting stringent industry standards, Camlock couplings minimize the risk of leaks and accidents, protecting both personnel and the environment. Their reliable performance ensures compliance with safety regulations, making them indispensable in high-stakes operations.

Herstellung

Seamless Fluid Transfers

Manufacturing plants rely on Camlock couplings for transferring water, oils, and chemicals between machinery, ensuring uninterrupted production lines. Their ability to handle frequent connections and disconnections without compromising the seal is vital for dynamic manufacturing environments.

Easy Maintenance

Their tool-free connections simplify the setup and maintenance of equipment, boosting productivity and reducing downtime. This ease of use allows for quicker adjustments and repairs, maintaining smooth operations.

Custom Fit

Available in various sizes and materials, Camlock couplings adapt to the unique needs of diverse manufacturing processes. This customization ensures that manufacturers can find the perfect fit for their specific applications, enhancing overall efficiency.

Lebensmittel und Getränke

Sanitary Connections

Camlock couplings designed for the food and beverage industry feature smooth, easy-to-clean surfaces that prevent contamination and comply with strict hygiene standards. These sanitary designs are essential for maintaining product safety and quality.

Regulatory Compliance

Manufactured from food-grade materials, these couplings meet FDA and NSF certifications, ensuring safe and reliable connections in processing facilities. Compliance with regulatory standards is crucial for avoiding contamination and ensuring consumer safety. For more on FDA food safety standards, visit the FDA’s official guidelines.

Flexible Usage

From mixing to dispensing, Camlock couplings enhance operational flexibility, allowing quick adjustments without compromising system integrity. This versatility supports various stages of food and beverage production, improving overall workflow efficiency.

Konstruktion

Quick Water Supply

Construction sites benefit from Camlock couplings’ ability to swiftly connect hoses for concrete mixing, dust control, and sanitation. Their quick-connect feature allows rapid assembly and disassembly, adapting to the fast-paced construction environment.

Reliable Material Handling

Whether transferring air, fuel, or chemicals, Camlock couplings provide secure, leak-proof connections that withstand the rugged conditions of construction sites. This reliability is essential for maintaining safety and operational efficiency.

Portable and Versatile

Their lightweight and easy-to-use design makes Camlock couplings ideal for multi-trade projects, ensuring reliable connections across various tasks. Portability and versatility are key for construction professionals who need connectors that can be easily transported and utilized on different projects.

Waste Management

Secure Waste Transfers

Camlock couplings enable safe movement of liquid and slurry waste, preventing leaks and ensuring compliance with environmental regulations. Their leak-proof connections are crucial for maintaining environmental standards and operational efficiency.

Durable for Recycling

In recycling and treatment facilities, these couplings handle corrosive materials with ease, supporting smooth and sustainable operations. Their durability ensures long-term performance in harsh waste management environments.

Eco-Friendly Impact

By ensuring efficient material transfers, Camlock couplings help minimize waste and reduce the environmental footprint of industrial processes. Their role in sustainable practices contributes to the overall eco-friendliness of various industries.

Emergency and Disaster Relief

Swift Deployment

In crises, Camlock couplings allow quick setup of essential systems like water supply and medical facilities, providing timely aid where it’s needed most. Their rapid-connect feature is vital for emergency response efforts.

Adaptable Applications

From water distribution to fuel supply, their versatility meets diverse emergency needs, ensuring critical resources are delivered efficiently. This adaptability is essential for addressing the varied requirements of disaster relief operations.

Tough and Reliable

Built to endure extreme conditions, Camlock couplings maintain secure connections even in the most challenging disaster-stricken areas. Their durability ensures that vital connections remain intact throughout relief operations.

Frequently Asked Questions

What are Camlock couplings used for?

Camlock couplings connect hoses and pipes across industries like agriculture, oil & gas, manufacturing, and food & beverage, ensuring secure, leak-proof links.

How do Camlock couplings work?

Using a cam-operated locking mechanism, they create tight seals for quick, tool-free connections and disconnections.

What materials are Camlock couplings made from?

Common materials include stainless steel, aluminum, and heavy-duty polymers, tailored to different environmental and application needs.

Are there sanitary Camlock couplings available?

Yes, specially designed with smooth surfaces and easy-clean features for the food and beverage industry.

How do I maintain Camlock couplings?

Regularly inspect for wear, clean the couplings, and ensure the cam mechanism operates smoothly to keep connections leak-free.

[product_shortcode id=”psm_shortcode_1732184043″]

Abschluss

Camlock couplings are indispensable across numerous industries, offering unmatched versatility and reliability. Whether enhancing agricultural irrigation, securing oil pipelines, streamlining manufacturing processes, maintaining food safety, supporting construction projects, managing waste efficiently, or enabling swift disaster response, Camlock couplings ensure seamless connections and material transfers.

Their robust construction, ease of use, and adaptability make them the go-to choice for professionals seeking dependable solutions in fluid and material handling. As industries evolve towards greater efficiency and sustainability, Camlock couplings will continue to underpin the infrastructure that drives modern industrial success.

Pipe fittings are essential components in a wide array of plumbing, industrial, and construction systems. Whether you’re a DIY enthusiast tackling a home project or a professional engineer designing complex machinery, understanding pipe fittings is crucial for ensuring efficient and leak-free connections. In this comprehensive guide, we will delve into the various types of pipe fittings, the materials they are made from, and their diverse applications. Additionally, we’ll highlight the role of SSABP, a leading Camlock Coupling manufacturer, in providing high-quality solutions for your piping needs.

Pipe fittings are the connectors used to join straight sections of pipe, adapt to different sizes or shapes, and control the flow of liquids and gases within a system. They come in various shapes, sizes, and materials, each designed to meet specific requirements based on pressure, temperature, and the type of fluid being transported. Proper selection and installation of pipe fittings are vital to the integrity and longevity of any piping system.

Types of Pipe Fittings

Understanding the different types of pipe fittings is the first step in selecting the right components for your project. Here are some of the most common types:

1. Elbows

Elbows are used to change the direction of the piping system. They come in various angles, such as 45°, 90°, and 180°, allowing for precise directional changes without compromising the flow.

2. Tees

Tees allow for the branching of a pipe into two directions. They are essential for creating Y-shaped or T-shaped connections, facilitating the distribution of fluids to multiple outlets.

3. Couplings

Couplings are short lengths of pipe used to connect two pipes together. They are essential for extending the length of piping or joining pipes of the same diameter.

4. Reducers

Reducers are fittings that connect pipes of different diameters. They help in transitioning from a larger pipe to a smaller one or vice versa, ensuring a smooth flow between varying pipe sizes.

5. Flanges

Flanges are flat, circular fittings used to connect pipes, valves, pumps, and other equipment. They provide a sturdy and leak-proof connection, often bolted together with gaskets.

6. Camlock Couplings

Camlock couplings, also known as cam and groove couplings, are quick-connect fittings that provide a secure and leak-free connection. They are widely used in industries for their ease of use and reliability. SSABP is renowned for manufacturing high-quality Camlock Couplings, ensuring seamless integration into various piping systems.

7. Unions

Unions are fittings that allow for easy disconnection and reconnection of pipes. They are particularly useful for maintenance purposes, enabling sections of piping to be removed without disrupting the entire system.

8. Adapters

Adapters are used to connect pipes of different types, such as transitioning from threaded to flanged connections or from one material to another.

9. Caps

Caps are fittings used to seal the end of a pipe, preventing the flow of fluids and protecting the pipe from contamination.

10. Crosses

Cross fittings allow for the connection of four pipes at a single point, facilitating complex piping networks.

Materials Used in Pipe Fittings

The choice of material for pipe fittings is critical, as it affects the durability, corrosion resistance, and overall performance of the piping system. Here are some common materials used:

1. Brass

Brass fittings are known for their corrosion resistance and durability. They are commonly used in plumbing and heating systems, as well as in applications where aesthetic appeal is important.

2. Stainless Steel

Stainless steel fittings offer excellent strength and corrosion resistance, making them ideal for harsh environments and high-pressure applications. They are widely used in the chemical, petrochemical, and food processing industries.

3. PVC (Polyvinyl Chloride)

PVC fittings are lightweight, affordable, and resistant to many chemicals. They are commonly used in residential plumbing, irrigation systems, and drainage applications.

4. CPVC (Chlorinated Polyvinyl Chloride)

CPVC fittings are similar to PVC but can withstand higher temperatures, making them suitable for hot water systems and industrial applications.

5. PEX (Cross-Linked Polyethylene)

PEX fittings are flexible and easy to install, making them popular in modern plumbing systems. They are resistant to scale and chlorine, ensuring long-term performance.

6. Camlock (Cam and Groove)

Camlock fittings, such as those manufactured by SSABP, are typically made from materials like stainless steel, carbon steel, or brass. They are designed for quick and secure connections, often used in bulk fluid transfer applications.

7. Cast Iron

Cast iron fittings are heavy-duty and provide excellent strength and durability. They are commonly used in sewage systems, industrial applications, and heavy-duty plumbing.

8. Aluminum

Aluminum fittings are lightweight and resistant to corrosion, making them suitable for specific industrial applications where weight is a concern.

Applications of Pipe Fittings

Pipe fittings are used in a multitude of industries and applications, each requiring specific types and materials to meet their unique needs.

1. Residential Plumbing

In homes, pipe fittings are essential for water supply systems, waste disposal, and heating systems. Common materials include copper, brass, and PVC, which provide reliable performance and ease of installation.

2. Commercial Buildings

Commercial buildings utilize pipe fittings for complex HVAC systems, water distribution, and fire suppression systems. Stainless steel and brass fittings are often preferred for their durability and compliance with building codes.

3. Industrial Systems

Industries such as chemical processing, oil and gas, and food and beverage rely heavily on pipe fittings to transport various fluids and gases. High-strength materials like stainless steel and specialized Camlock couplings from SSABP ensure safe and efficient operations.

4. Agriculture

In agricultural settings, pipe fittings are used for irrigation systems, livestock watering, and processing facilities. PVC and CPVC fittings are popular due to their resistance to chemicals and ease of maintenance.

5. Automotive and Aerospace

Pipe fittings play a role in fuel systems, hydraulic systems, and cooling systems within automotive and aerospace applications. Precision-engineered fittings made from high-grade materials ensure reliability and performance.

6. Construction

Construction projects use pipe fittings for water supply, drainage, and structural support systems. The choice of fittings depends on the specific requirements of the project, including load-bearing capacity and environmental conditions.

7. Energy Sector

In the energy sector, pipe fittings are integral to oil and gas pipelines, renewable energy systems, and power plants. Robust materials like stainless steel and specialized couplings ensure the safe transport of energy resources.

8. Healthcare

Healthcare facilities use pipe fittings in medical gas systems, sterilization equipment, and laboratory setups. Materials must meet stringent hygiene and safety standards, often requiring stainless steel or other non-corrosive materials.

Standards and Certifications

Adhering to industry standards and certifications is crucial for ensuring the quality and safety of pipe fittings. Organizations like the International Organization for Standardization (ISO) develop and publish standards that pipe fittings must meet to ensure compatibility and reliability across different applications and regions.

ISO Standards for Pipe Fittings

ISO standards provide a framework for manufacturing and testing pipe fittings to ensure they meet global quality and safety requirements. These standards cover various aspects, including dimensions, materials, performance criteria, and testing methods. By complying with ISO standards, manufacturers like SSABP ensure that their products are reliable and suitable for international markets.

Abschluss

Pipe fittings are integral to the functionality and efficiency of plumbing, industrial, and construction systems. By understanding the different types, materials, and applications, you can make informed decisions that enhance the performance and longevity of your piping systems.

Investing in the right pipe fittings and adhering to proper installation and maintenance practices will ensure that your systems operate smoothly and effectively. Whether you’re embarking on a DIY project or managing large-scale industrial operations, the right pipe fittings are the foundation of a successful and durable piping system.

Do you want to know how the stainless steel camlock that runs smoothly in your transmission system and equipment is made? What rigorous processes and strict tests does it go through?

If the answer is yes, you will get the information you want from this article. You can learn about the manufacturing process of stainless steel camlock from the following 16 steps and get the answers to your questions.

Step 1: Customize the Mold

First, customize the mold. An excellent product comes from a high-quality mold. A standard high-quality mold will not produce a bad product.

Therefore, the design of the mold is crucial. It is the basis of everything. It needs to be confirmed by multiple parties before other processes can be continued. If the mold manufacturing does not achieve good results, it needs to be remade until a high-quality mold is manufactured.

Therefore, it is necessary to first customize the appropriate mold according to the drawing, and only after the mold is manufactured can the next process begin.

Step 2: Wax Mold Injection

Wax Mold Injection is a very important step. After making the mold, you need to preheat the mold to ensure that the wax can flow evenly and fill the entire mold. Then, the next step is to start wax mold injection.

Wax Mold Injection mainly uses high-quality stable medium-temperature wax, and the ambient temperature is stable at 24-26℃. Because wax has certain requirements for the environment, it will deform if it is too hot, affecting product quality and production efficiency.

Semi-automatic machines can be used when the manufacturing quantity is small, and fully automated machines must be used when the batch quantity is large. The use of automated machines can accurately control the manufacturing process of the product to ensure that there are no accidents in the production process.

The wax enters the mold through an automated machine, evenly filling the mold and gradually forming a wax model. When a complete wax model is formed, this step is completed.

Step 3: Wax Mold Repair

After wax mold injection, you may find that there is a problem with the connection between the molds, affecting the shape or aesthetics of the product, or there is excess wax poured into other places or overflowing. At this time, the wax mold repair process is needed.

The wax mold repair will repair any problem areas or remove any excess wax to ensure the quality and integrity of the product. After this, the product will be inspected for bubbles, cracks or obvious defects.

Step 4: Wax Mold Welding

Different product structures and product designs have different arrangements, some are placed horizontally, and some are placed vertically.

Generally, a specific wax mold welding project will be designed based on the structure and characteristics of the product, such as how many pieces are in a string and how they will be arranged. These will be clearly written out so that they can be used as a standard reference for the manufacturing process.

Step 5: Mold Making

In the process of mold making, zircon sand and zirconium powder are generally used as mold making materials, which are mixed in a certain proportion to form a viscous and high-temperature resistant slurry. Then the wax mold is immersed in the slurry to evenly cover the surface of the wax mold.

After that, the wax mold coated with slurry is placed in the drying room for drying. Each drying room is kept at a constant temperature and humidity for 24 hours to ensure that the product can be effectively dried. Different drying rooms have different temperatures.

Next, the slurry coating and drying process are repeated until the thickness of the mold reaches the specified standard.

Step 6: Dewaxing

After the mold is made, the dewaxing step is carried out.

This step needs to be completed in a dewaxing kettle. Put the mold into it, keep the ambient temperature at high temperature and high pressure, wait for the wax mold in the mold to melt and flow out, and the mold is left.

Step 7: Pouring

Pouring is also a very important step.

First, put the mold into the natural gas roasting furnace and heat it to about 1000 degrees. Then heat the steel material to about 1600 degrees at the same time. After the steel material is heated to the required level, start pouring.

This step has certain risks, so pay attention to the safety of the staff.

Step 8: Lost Pattern

After the cast is cooled and solidified, a rough blank is obtained.

The next step is the lost pattern. Use a shell breaker to break the mold and take out the stainless steel casting inside. This is a product blank.

Next, this product blank will be processed and refined to gradually become a precise and high-quality stainless steel camlock.

Step 9: Cutting

During the pouring process, some essential pouring gates and risers will be formed.

The pouring gate refers to the channel for molten metal to enter the casting, and the riser refers to the supplementary part added during the metal casting process to prevent material shrinkage.

This part is essential in the manufacturing process, but it is not necessary in the final product. Therefore, these pouring gates and risers need to be cut away and separated from the manufactured product to ensure that subsequent processing is not disturbed.

Step 10: Grinding

After cutting, uneven parts will form on the product surface and in areas such as pouring gates, which may be burrs, protrusions, etc. These will affect the flatness, smoothness and integrity of the product.

Therefore, grinding equipment is needed to grind these uneven areas flat so that the next step can be carried out.

Step 11: Pickling

This step requires the use of an acidic solution to react chemically with the metal oxide on the surface of the product to remove the oxide layer on the surface of the product blank, making the surface of the product blank relatively smooth.

Step 12: Shot Blasting

After pickling, the shot blasting process can be carried out.

Shot blasting refers to the use of high-speed rotating steel shots to remove the oxide layer residue, steel slag debris and rust on the surface of the product blank, so that the product blank gradually turns into the original color of stainless steel.

This is the final product blank.

Step 13: Inspection and Storage

The finished product blanks need to undergo multiple inspections to ensure that they meet the standards and specifications before they are officially put into storage.

Step 14: CNC Machining

After the product blank is formed, further processing procedures are required.

CNC machine tools are needed to polish and refine the product’s size, accuracy, thread and other more detailed data to optimize and improve the quality and accuracy of the final product.

Step 15: Finished Product Storage

At this step, the product is basically manufactured and after a series of precise inspections and tests, the finished stainless steel camlock is stored in the warehouse.

This step of the process mainly uses various inspection instruments and equipment to inspect the product’s size, thread, angle, completeness, etc. The finished product’s air-tightness and service life will also be strictly tested to ensure that the product meets all standards.

Step 16: Packaging and Shipping

Finally, appropriate and reasonable packaging is carried out according to the customer’s order quantity and packaging requirements.

After everything is ready, the product will be shipped.

Abschluss

The above is the 16-step manufacturing process of stainless steel camlock.

After reading this article, most of your questions should have been answered, and you should have a certain understanding of the manufacturing process of stainless steel camlock.

If you have any other questions or want to know more relevant information, you are always welcome to write to us.
